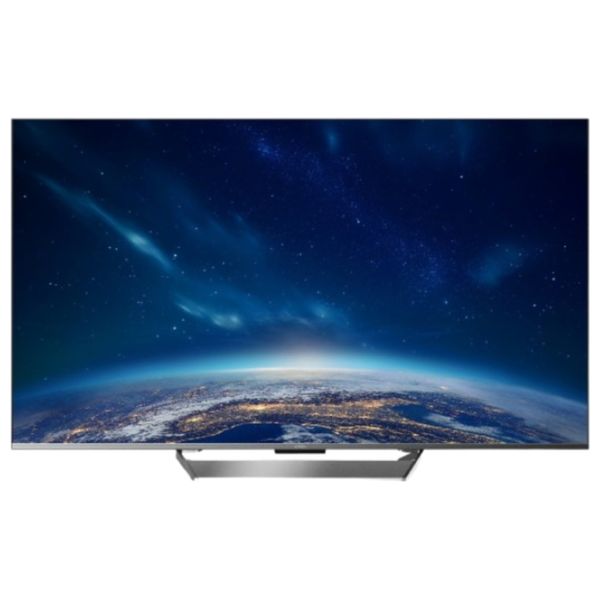

CHiQ 55-Inch QLED55N9YGTV Series - Smart - 4K - QLED - 144Hz

Product Type: QLED GOOGLE TV

Size: 55

Resolution: 3840*2160

Chassis Platform: MT9617

CPU: CA73*[email protected]

GPU: G52 MC1@550Mhz

OS: Google TV

RAM: 3GB

Stoarge: 32GB

Bluetooth: BT5.1

WIFI: 2T2R 2.4G&5G Hz+BT

model: Metal Frameless

Bottom Bezel（Material/color）: Metal/Black

Back Cover（Material/color）: Plastic/Black

Base Stand（shape/Material/color）: Plastic/Black

Panel Specification

Backlight Type: QLED

Panel Supplier (Open Cell): CSOT

Open Cell TYPE: IPS

Aspect Ratio: 16:9

Panel Active Size (Inch): 54.6

Display Resolution: 3840*2160

Brightness (cd/m2): LCM: 400nit (typ.)

Contrast Ratio (Open Cell): LCM:6000:1(typ.)

Response Time (G to G) (ms): 6.5ms(typ.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Display Color: 1.07G

Refresh Rate (Hz): 144Hz

Local Dimming: NO

QLED: QLED

Color Gamut: LCM:93% DCI-P3(typ.)

Wide Color Gamut: YES

Smart features

Open Broswer: NO

App Store: Google Play

Multiscreen: DLAN, Google Cast, Airplay

Integrated voice assistant: Google assistant

works with alexa: NO

Pre-Install Application: Netflix,Amazon Prime Video,YouTube

Software upgrading: USB and Internet

E-manual: YES

HBBTV: NO

Ginga: NO

System features

OSD Language: EN, FR, IT, DE, JA, PT, ES, AR, ZH, PL, HU, ID, RU, FA, CZ, NL, NO......etc

EPG: YES

Subtitle: YES

Teletext: YES

Sleep Timer: YES

"Parental Lock（Blocking Device/Filter/

V-Chip)": YES

Hotel Mode: NO

ARC: YES

eARC: YES

CEC: YES


Picture Mode: User, Standard, Vivid, Sport, Movie, Game, EnergySaving

3D Comb Filter: YES

Dynamic Noise Reduction: YES

HLG: YES

HDR 10: YES

HDR 10+: NO,function ready

Dolby Vision: YES

Dolby Vision IQ: YES

MEMC: YES,4K@120Hz

ALLM: YES

VRR: YES

Freesync: NO

Dynamic Backlight: YES

Advanced Settings: Game Mode,PC Mode

Color Temperature: Warm/Cold/Standard/User

Light Sensor: YES

Gaming: YES

Broadcasting-ATV

Reception Range: 48.25MHz ~ 863.25MHz

Video System: PAL

Sound System: B、D、G、I、K

Max Storage Channels: 100CH

Broadcasting-DTV

TV digital System: DVB-C, DVB-S/S2, DVB-T/T2

Reception Range: "DVB-T/T2:

VHF (174MHz ~ 230MHz)

UHF (474MHz ~ 862MHz)"

Channel Bandwidth: [7M, 8M]

Max Storage Channels: 9999CH

CI+: NO

Terminals

Side: 1*HDMI2.1,1*USB 2.0

Button: 2*HDMI2.1,1*LAN,1*AV Mini,1*EARPHONE,1*Optical

USB MOUSE/KEYBOARD/CAMERA: NO

Audio

Speakers: Integrated Speaker Boxes (Bottom Side)

Audio Power Output (THD=7%): 2*10W

Sound Mode: User, Standard, Vivid, Sport, Movie, Music, News

Dolby Audio Process（DAP）: YES

Dolby Atmos: NO

Dolby/Dolby+: YES

DBX: NO

Subwoofer: NO

Balance: YES

Surround: YES

STEREO: YES

Auto volume control: YES

Advanced Settings: EQ

Dimension

UNIT (with stand)mm: 1225.6*268.5*755.7

UNIT (without stand)mm: 1225.6*91*709

Carton Dimension (W*D*H) mm: 1334*128*820

20GP/40GP/40HQ: 152/306/459

Net weight（KG）: 11.1

Gross weight（KG）: 15

Wall Support Type: 400*200,M6

Power source

Power Supply: AC 100V-240V 50/60Hz

Power Consumption (TV On): 165W

Power Consumption (Standby): ≤0.5W

Media format

Video Decoder: VP9, HEVC/H.265, MPEG1/2, MPEG4, Sorenson H.263, H.263, H.264, VC1, VP8, AV1

Audio Decoder: MPEG1/2 Layer 1, MPEG1/2 Layer 2, MPEG1/2/2.5 Layer 3, AC3(DD)，EAC3(DDP), AAC-LC, FLAC

Photo Decoder: jpg,jpeg,bmp,png,gif
