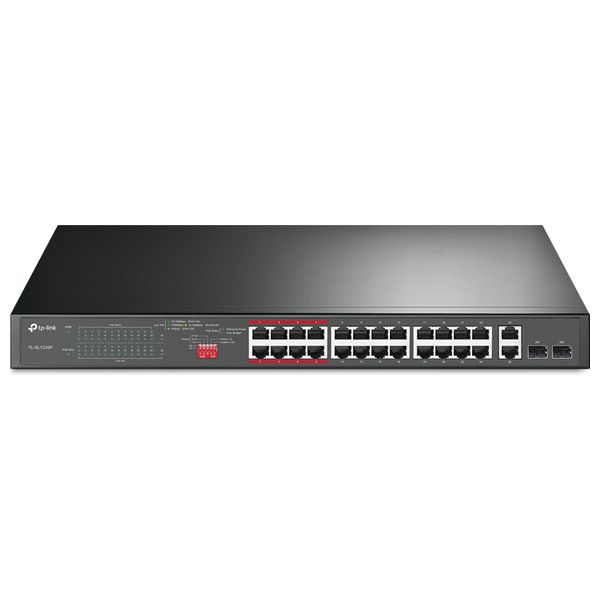

TP-LINK TL-SL1226P - Switch

[سويج] 24-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+ TL-SL1226P

TL-SL1226P PoE+ Switch - 24 Ports with 2 Gigabit Ports and 2 Combo Gigabit SFP Slots

Hardware Features:

• Interface:
• 24× PoE+ 10/100 Mbps RJ45 Ports
• 2× Gigabit RJ45 Ports
• 2× Combo Gigabit SFP Slots
• Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
• Fan Quantity: 2 Fans
• Physical Security Lock: Yes
• Power Supply: 100-240 VAC, 50/60 Hz
• PoE+ Ports (RJ45):
• Standard: 802.3at/802.3af compliant
• PoE Ports: Port 1 – Port 24
• PoE Power Budget: 250 W
• Maximum Power Consumption:
• 18.32 W (220/50 Hz, no PD connected)
• 294 W (220/50 Hz, with 250 W PD connected)
• Maximum Heat Dissipation:
• 62.47 BTU/h (no PD connected)
• 1002.54 BTU/h (with 250 W PD connected)
• Switching Capacity: 8.8 Gbps
• Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Software Features:

• Advanced Features:
• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• PD Detection
• Intelligent Power Supply
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control
• Transmission Method: Store-And-Forward

Others:

• Certification: FCC
• Package Contents:TL-SL1226P
• Power Cable
• Installation Guide
• Two Mounting Brackets and Fittings

Environment:

• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% non-condensing
• Storage Humidity: 5–90% non-condensing

Note:

*The total PoE power budget is 250 W for all PoE ports.

**Extend Mode allows for a PoE transmission range of up to 250 meters.
