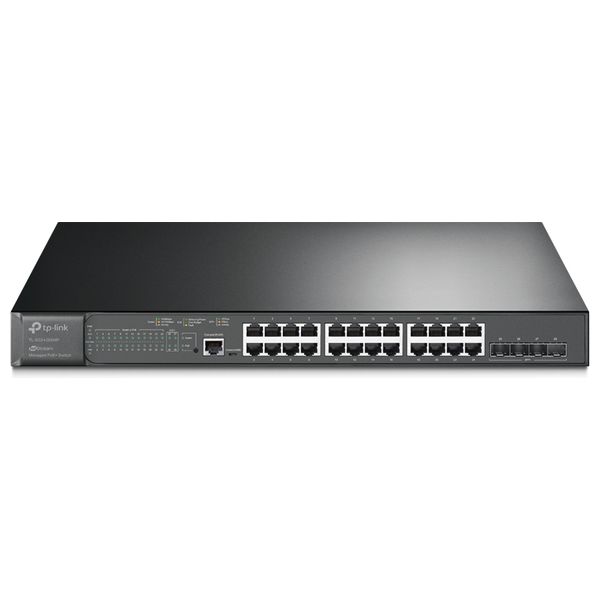

TL-SG3428XMP

JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

• 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. Learn More about TP-Link 10G/Multi-Gigabit Switching Solutions
• 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W^*.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES

Interface • 24× 10/100/1000 Mbps RJ45 Ports

• 4× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity 2

Power Supply 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45) • Standard: 802.3at/af compliant

• PoE+ Ports: 24 Ports, up to 30 W per port

• Power Budget: 384 W

Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 34.4 W (110V/60Hz) ( no PD device connected)

465.8 W (110V/60Hz) ( with 384 W PD device connected)

Max Heat Dissipation 117.38 BTU/h (110 V/60 Hz) (no PD device connected)

1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)

PERFORMANCE

Switching Capacity 128 Gbps

Packet Forwarding Rate 95.23 Mpps

MAC Address Table 16 K

Packet Buffer Memory 12 Mbit

Jumbo Frame 9 KB
