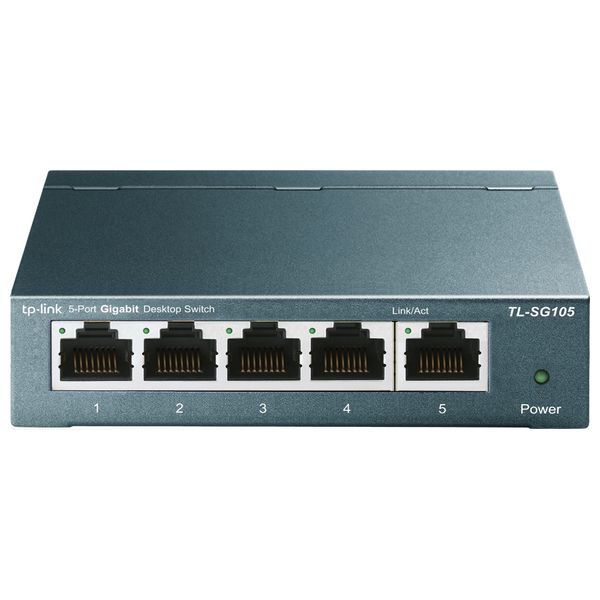

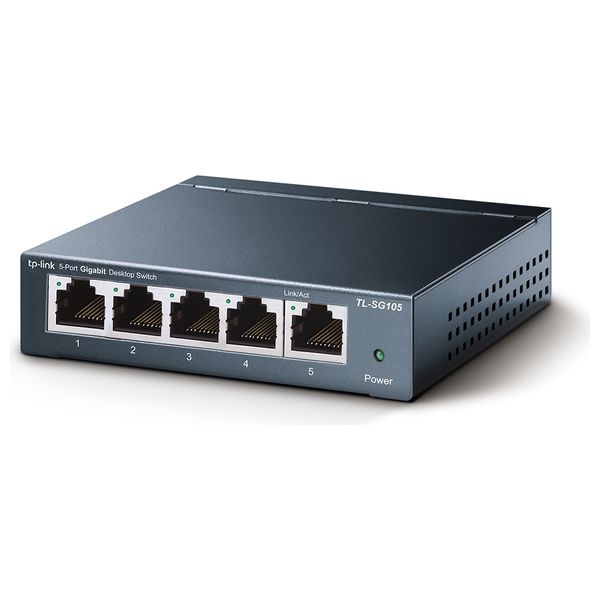

HARDWARE FEATURESStandards and ProtocolsIEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1pInterface5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX PortsFan QuantityFanlessExternal Power SupplyExternal Power Adapter (Output: 5 V DC / 0.6A)LED IndicatorSystem Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)Max Power Consumption2.3 W (220 V/ 50 Hz)Max Heat Dissipation7.83 BTU/hPERFORMANCEPacket Forwarding Rate7.4 MppsMAC Address Table2KPacket Buffer Memory1 MbJumbo Frame16 KBSOFTWARE FEATURESAdvanced FeaturesGreen Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP SnoopingTransfer MethodStore and ForwardOTHERSCertificationCE, FCC, RoHSPackage Contents5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation GuideEnvironmentOperating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
19,000 IQD
Description
HARDWARE FEATURESStandards and ProtocolsIEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1pInterface5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX PortsFan QuantityFanlessExternal Power SupplyExternal Power Adapter (Output: 5 V DC / 0.6A)LED IndicatorSystem Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)Max Power Consumption2.3 W (220 V/ 50 Hz)Max Heat Dissipation7.83 BTU/hPERFORMANCEPacket Forwarding Rate7.4 MppsMAC Address Table2KPacket Buffer Memory1 MbJumbo Frame16 KBSOFTWARE FEATURESAdvanced FeaturesGreen Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP SnoopingTransfer MethodStore and ForwardOTHERSCertificationCE, FCC, RoHSPackage Contents5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation GuideEnvironmentOperating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Product Information
| Type: | Hub |
| Number of Ethernet Ports: | 5 |
| Color: | Black |
| Features: | Port 10/100/1000Mbps |
