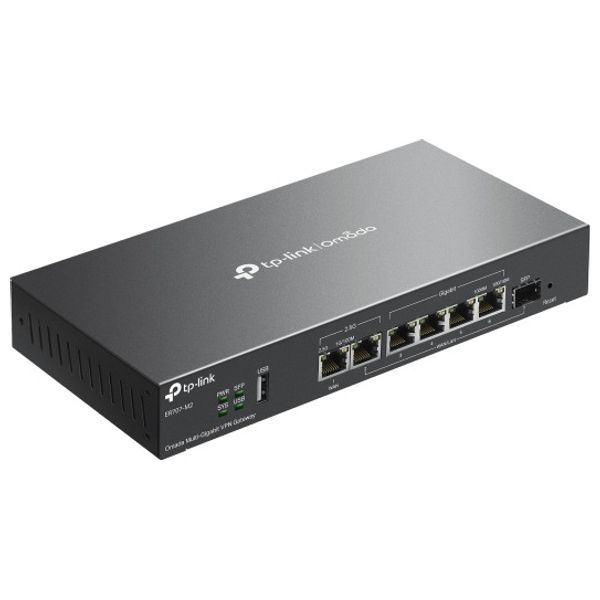

TP-LINK ER707-M2 - LAN Hub

Omada Multi-Gigabit VPN Gateway

2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)

5× Gigabit WAN/LAN ports (1× SFP, 4× RJ45)

Load Balancing on up to 6 WAN ports‡ increases the utilization rate of multi-line broadband

1× USB port (Supports USB storage, and LTE backup with LTE dongle)

High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN

Centralized cloud management via the web or the Omada app*

DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security

Rackmount, Desktop, or Wall Mount

Access Control Source/Destination IP Based Access Control

Filtering • WEB Group Filtering§

• URL Filtering

• Web Security§

ARP Inspection • Sending GARP Packets§

• ARP Scanning§

• IP-MAC Binding§

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

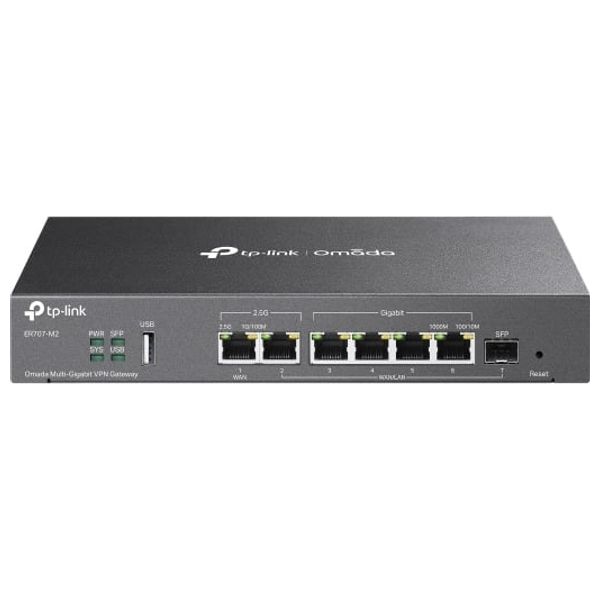

Interface • 1× 2.5G RJ45 WAN Port

• 1× 2.5G RJ45 WAN/LAN Port

• 1× Gigabit SFP WAN/LAN Port

• 4× Gigabit RJ45 WAN/LAN Ports

• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity Fanless

Button Reset Button

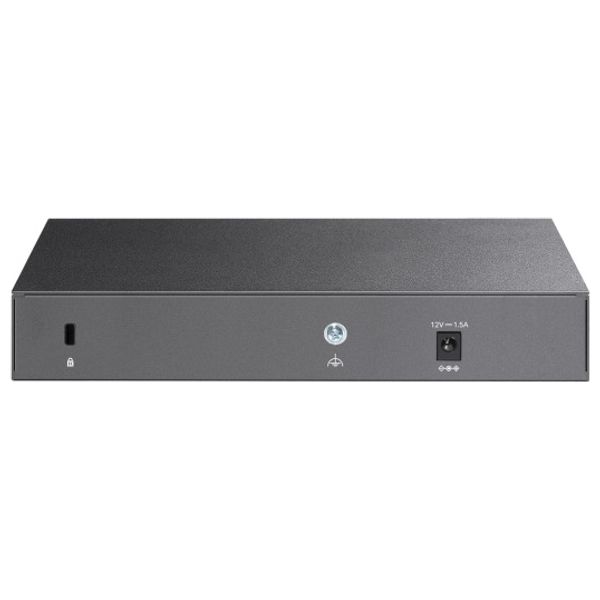

Power Supply 12V/1.5A Adapter

PoE Budget -

Flash 128MB NAND

DRAM 1 GB DDR4

LED PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Protection 4 kV surge protection

Enclosure Steel

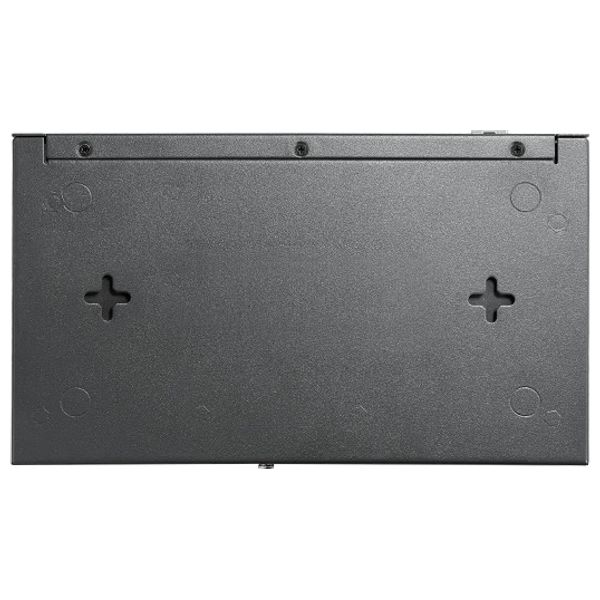

Mounting Rackmout, Desktop, or Wall Mount

Max Power Consumption 14.2 W (with USB2.0 connected)

7.1 W (without USB2.0 connected)

PERFORMANCE

IPS Throughput TCP: 208 Mbps;

UDP: 161 Mbps

DPI Throughput TCP: 1823 Mbps;

UDP: 1272 Mbps

WireGuard VPN Throughput 343Mbps

Concurrent Session 500,000

New Sessions /Second 6,000

NAT (Static IP) 2365.17 Mbps / 2364.45 Mbps

NAT(DHCP) 2364.45 Mbps / 2366.04 Mbps

NAT(PPPoE) 2347.14 Mbps / 2348.29 Mbps

NAT (L2TP) 1308.86 Mbps / 974.10 Mbps

NAT (PPTP) 1236.27 Mbps / 1280.99 Mbps

IPsec VPN Throughput • ESP-SHA1-AES256: 673.3 Mbps

• ESP-SHA256-AES256: 650.2 Mbps

• ESP-SHA384-AES256: 629.3 Mbps

• ESP-SHA512-AES256: 633.8 Mbps

L2TP VPN Throughput • Unencrypted: 1243.7 Mbps

• Encrypted: 561.0 Mbps

SSL VPN Throughput 132.24 Mbps

66 Byte Packet forwarding rate 1832.69 Mbps / 1741.84 Mbps

1,518 Byte Packet forwarding rate 2461.18 Mbps / 2457.32 Mbps

BASIC FUNCTIONS

WAN Connection Type • IPv4_Static IP

• IPv4_Dynamic IP

• IPv4_PPPOE

• IPv4_L2TP

• IPv4_PPTP

• IPv6_PPP

• IPv6_DHCPv6

• IPv6_Static IP

• IPv6_6to4

• IPv6_Pass-Through

• Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone Modify WAN/LAN MAC Address†

DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces*

• Multi-Net DHCP*

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

Advanced Routing • Static Routing

• Policy Routing

• RIP (only in Standalone Mode)

• OSPF (only in Standalone Mode)

Bandwidth Control • IP/Port-based Bandwidth Control

• Guarantee & Limited Bandwidth

Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing§, Failover)

• Online Detection

NAT • One-to-One NAT§

• Multi-Net NAT

• Port Forwarding

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

Session Limit IP-based Session Limit

VPN

IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm

• IKEv1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• PPTP VPN Clients (12)

• 60 Tunnels (Shared with L2TP)

• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• L2TP VPN Clients (12)

• 60 Tunnels (Shared with PPTP)

• L2TP over IPSec

OpenVPN • OpenVPN Server

• OpenVPN Clients (6)

• 66 OpenVPN Tunnels*

WireGuard VPN • 20 Tunnels

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password*

• Hotspot (Local User/Voucher*/SMS*/Radius*)

• External Radius Server

• External Portal Server*

• LDAP

MANAGEMENT

Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3*

• Diagnostics (Ping & Traceroute)§

• NTP Synchronize§

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Intelligent Network Monitoring*

• Abnormal Event Warnings*

• Unified Configuration*

• Reboot Schedule*

OTHERS

Certification CE, FCC, RoHS

Package Contents • ER707-M2

• Power Adapter

• Quick Installation Guide

• Rackmount Kit

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% non-condensing
