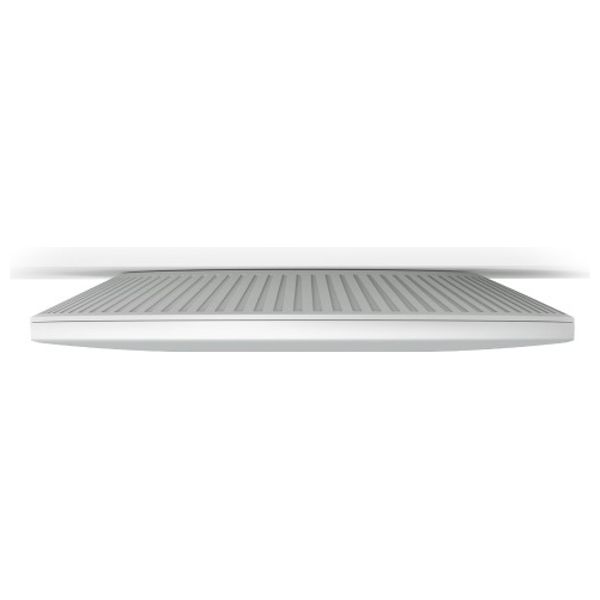

TP-LINK AX3600-EAP660 HD - Ceiling Mount Point to Point CPE

AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

Ultra-Fast Wi-Fi 6 Speeds (1148 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz).†

Up to1,000+ client capacity, best for high-density scenarios.***

The brand-new ultra-slim design (8.7 × 8.7 × 1.3 in)

Integrated into Omada SDN, supporting centralized cloud Management, ZTP§, and more.

The 2.5 Gbps Ethernet port boosts total internet throughput.

Supports 802.3at PoE for convenient deployment and installation.

Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Button Reset

Power Supply • 802.3at PoE

• 12 V DC

Power Consumption • EU: 25.5 W

• US: 22.3 W

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type Internal Omni

• 2.4 GHz: 4× 4 dBi

• 5 GHz: 4× 5 dBi

Bluetooth V5.2

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Coverage 200㎡(2150ft²)†

Concurrent Clients 1,020+***

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 1148 Mbps

Wireless Functions • 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO (2G: 4x4 DL MU-MIMO; 5G: 4x4 DL MU-MIMO)

• Seamless Roaming(802.11k/v/r)△

• Omada Mesh△

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication△

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, Band1 & Band2，EIRP)

<28 dBm(5 GHz, Band3，EIRP)

• FCC:

<26 dBm (2.4 GHz)

<26 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, FCC, RoHS

Package Contents • EAP660 HD

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
