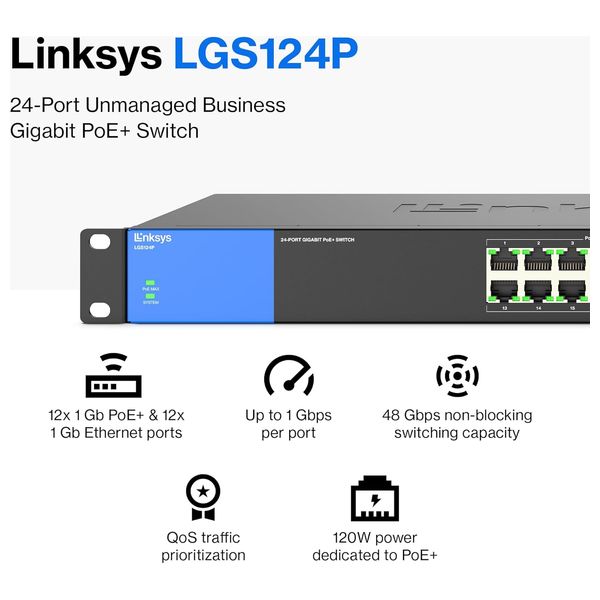

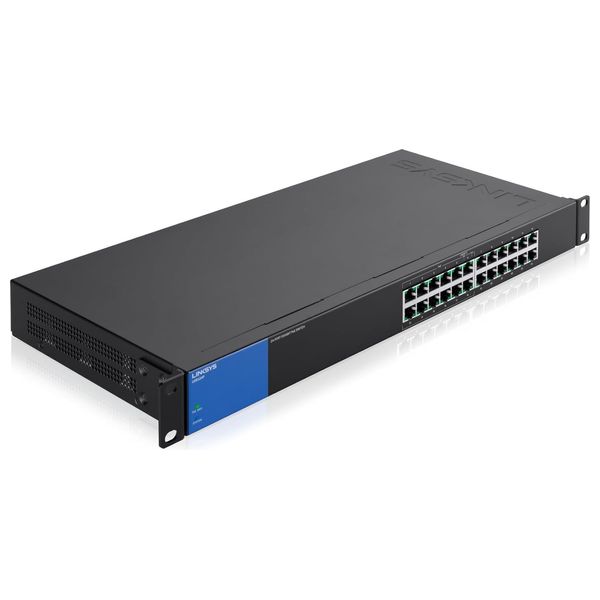

LINKSYS LGS124P - LAN Hub

Port Speed10/100/1000 Mbps

ProtocolIEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az

PoEIEEE 802.3af and IEEE 802.3at

Dedicated PoE Power Budget (Entire switch)120 W

PoE+ Ports12 Ports (1-6, 13-18)

Real deliver power budget110 W

Max PoE light indicator (85% total budget)ONover 95 WOFFlow 95 W

Quality of Service (QoS)802.1p and DSCP

Jumbo Frame SupportYes

Dimensions440 x 200 x 44 mm

Weight V12.76 kg

Weight V22.758 kg

Power100 V - 240 V 50/60 Hz Internal

MountableRack Mount

EnvironmentalTemperatureOperating0°C ~ 50°C (32°F ~ 122°F)Storing-40°C ~ 70°C (-40°F ~ 158°F)

HumidityOperating10 ~ 90% (non-condensing)Storing10 ~ 90% (non-condensing)Indicator LightColorDescriptionSystem Indicator LightSolid BlueNormal operationOFFPower OFF

Link / Act / GBSolid Green10/100/1000 speed link upFlashing Green10/100/1000 speed activitySolid Orange10/100 Speed Link upFlashing Orange10/100 Speed ActivityOFFLink down

PoE Indicator LightGreen ONPower SuppliedGreen OFFNo PD detected

PoE MAX Indicator LightSolid OrangeWhen total delivered PoE power is

reaching about 85% of max power budget
