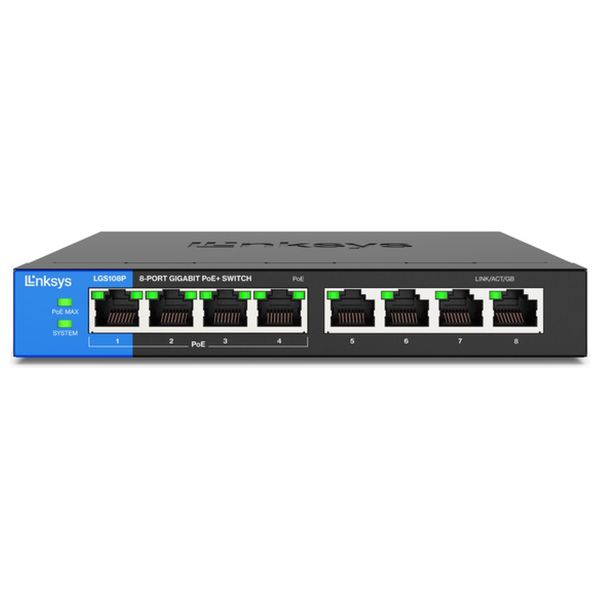

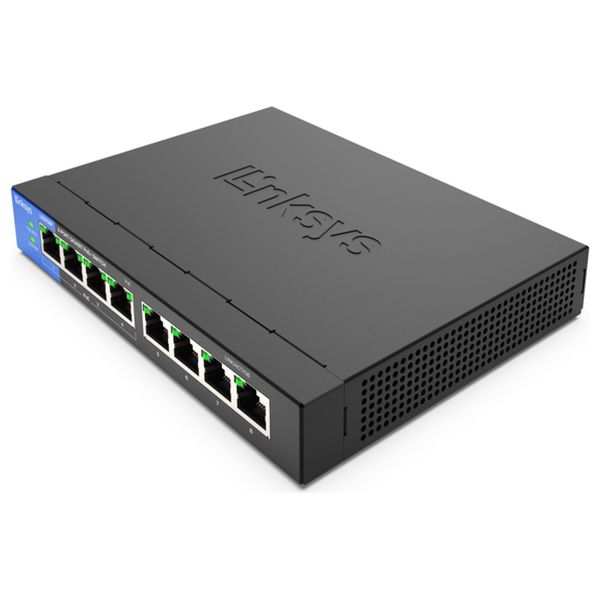

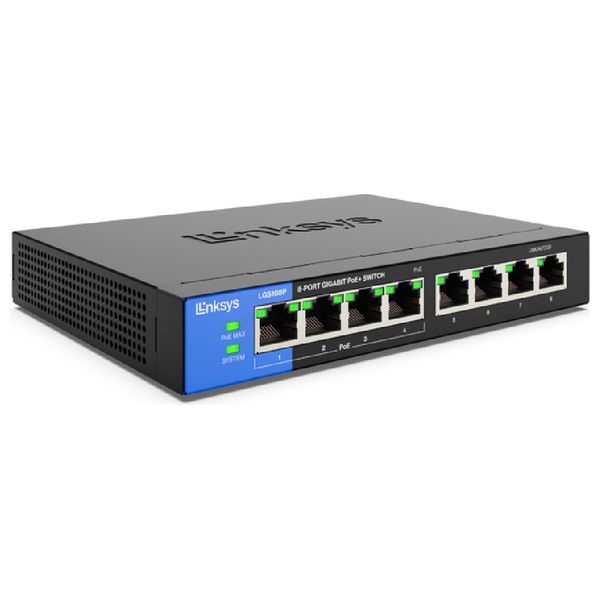

LINKSYS LGS108P - LAN Hub

Power Consumption

• 3.83 W / 7.0 W

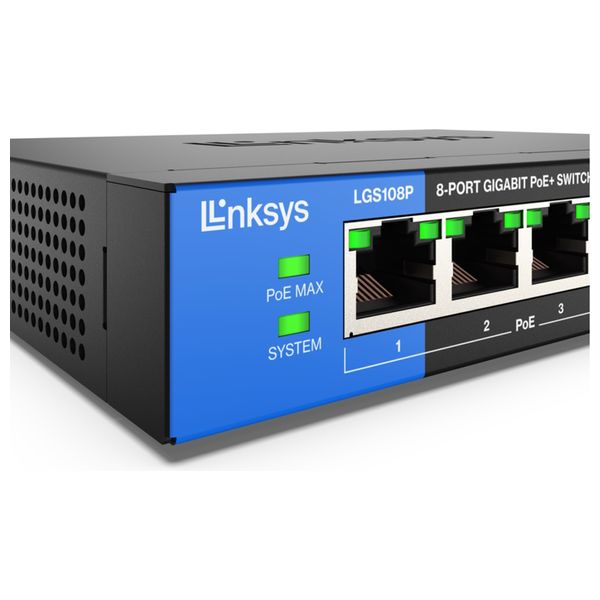

 LEDs

• Link, speed, activity, and PoE indicators

 Dimensions (LxWxH)

• 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)

 Weight

• 0.50 kg (1.10 lbs)

 Minimum System Requirements

• Connected devices need Ethernet connectivity and Ethernet cables

 Operating Humidity

• 10–90% (non-condensing)

 Operating Temperature

• 0–50°C (32–122°F)

 Ports

• 8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W

 Mounting

• Wall

 Quality Of Service

• 802.1p and DSCP

 Storage Temperature

• -40–70°C (-40–158°F)

 Warranty and Support

• 5 Year Warranty

 MAC Address Table Size

• 8,000 entries

 Performance

• 0.01488 Mpps for 10M port
• 0.1488 Mpps for 100M port
• 1.488 Mpps for 1000M port
• Full line rate and forwarding rate of 64B frame at:

 Power

• 54 VDC, 1.2 A

 Regulatory Compliance

• FCC Class A, CE

 Maximum Power Consumption

• 1.71 W / 5.08 W

 Fans

• None

 Storage Humidity

• 10–90% (non-condensing)

 Power Saving

• Cable connected detection, sleep mode

 Network Standards

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at (PoE+)
• IEEE 802.3az
• IEEE 802.3u
• IEEE 802.3x

 Bandwidth

• 16 Gbps (non-blocking)
