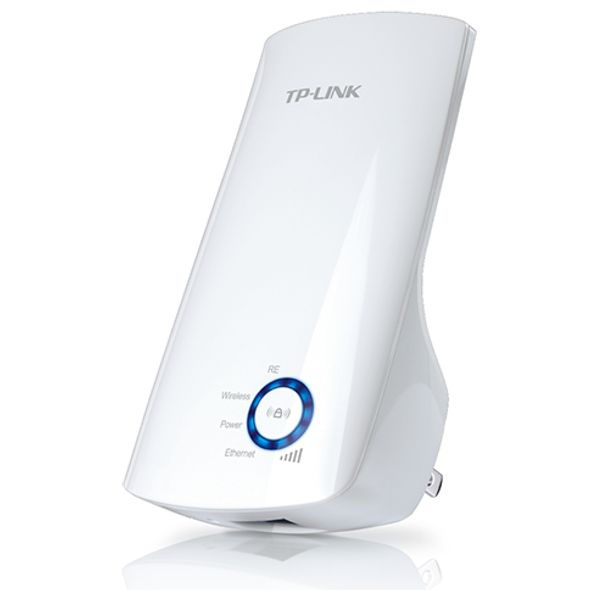

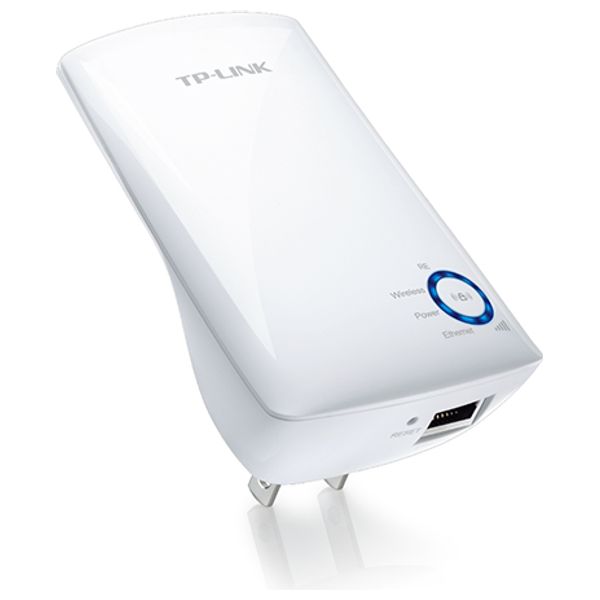

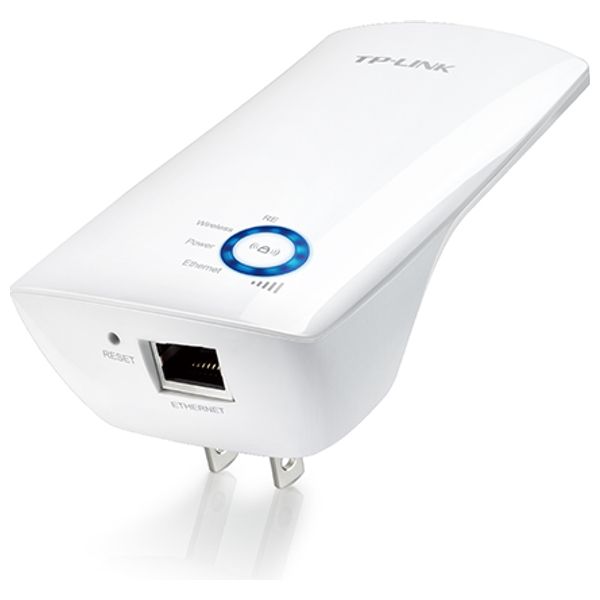

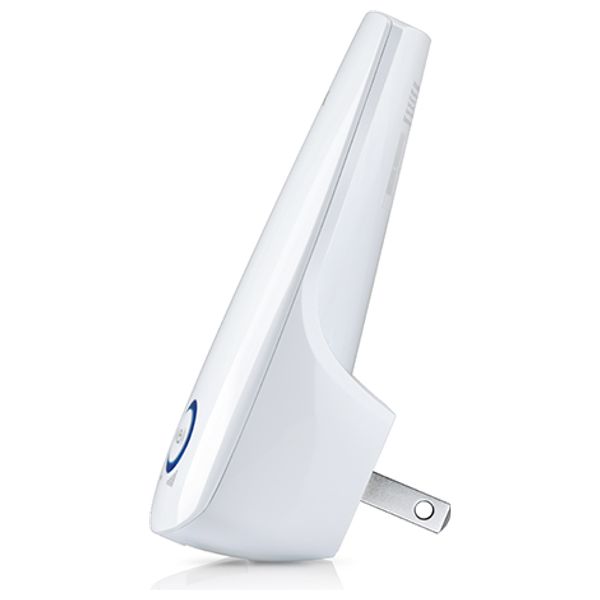

TP-Link WA850RE - WiFi Range Extender

WIRELESSWorking ModesRange Extender/Access PointHARDWARE FEATURESPlug TypeEU, UK, USInterface1 * 10/100M Ethernet Port (RJ45)Ports1 x 10/100Mbps Ethernet Port (RJ45)ButtonRE (Range Extender) Button, Reset ButtonInput Power100-240V~50/60HzPower ConsumptionAbout 3WWireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11bDimensions ( W x D x H )4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)Antenna2 * internalWIRELESS FEATURESWireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11bFrequency2.4~2.4835GHzSignal Rate11n: Up to 300Mbps (dynamic)

11g: Up to 54Mbps (dynamic)

11b: Up to 11Mbps (dynamic)Working ModesRange Extender/Access PointReception Sensitivity270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PERTransmit Power< 20 dBm (EIRP)Wireless ModesRange ExtenderWireless FunctionsWMM (Wi-Fi Multimedia)

Wireless MAC Address Filtering

Wireless Statistic

Domain Login FunctionWireless Security64/128/152-bit WEP

WPA-PSK / WPA2-PSKTransmission Power< 20 dBm (EIRP)OTHERSCertificationRoHSPackage Contents300Mbps Universal Wi-Fi Range Extender TL-WA850RE

RJ-45 Ethernet Cable

Resource CD

Quick Installation GuideSystem RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
