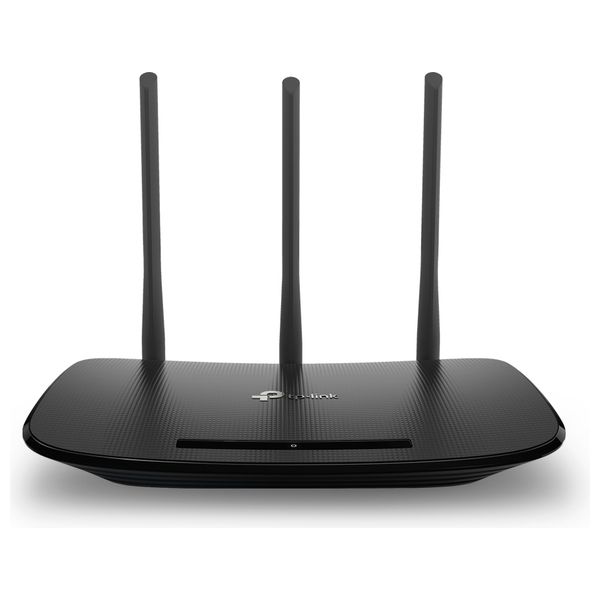

TP-Link TL-WR940N - Router

• 450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
• Three antennas increase the wireless robustness and stability
• Supports 3 modes: Router, Range Extender and Access Point modes
• Easy wireless security encryption at a push of WPS button
• Bandwidth Control: assigns your preferred devices with more bandwidth

WIRELESS StandardsWi-Fi 4

IEEE 802.11n/b/g 2.4 GHzWiFi SpeedsN450

2.4 GHz: 450 Mbps (802.11n)WiFi Range2 Bedroom Houses3× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areasWiFi CapacityLegacyWorking ModesRouter Mode

Access Point Mode

Range Extender Mode HARDWARE Processor Single-Core CPU Ethernet Ports1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN PortsButtonsWPS/Wi-Fi Button

Power On/Off Button

Reset ButtonPower9 V ⎓ 0.6 ASECURITY WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)Network SecuritySPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway Guest Network1× 2.4 GHz Guest NetworkSOFTWAREProtocolsIPv4

IPv6Parental Controls URL Filtering

Time Controls WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TPQuality of Service QoS by Device NAT Forwarding VIrtual Server

Port Forwarding

Port Triggering

DMZ

UPnPIPTVIGMP Proxy

IGMP Snooping DHCPA ddress Reservation

DHCP Client List

Server DDNSNO-IP

Comex

Dyn DNS ManagementTether App

Webpage

Check Web Emulator>PHYSICAL Dimensions (W×D×H)9.1 × 5.7 × 1.4 in

(230 × 144 × 35mm)Package Contents Wi-Fi Router TL-WR940N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)Certifications FCC EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power FCC:

<30dBm WiFi Reception Sensitivity 450M: -68dBm@10% PER

216M: -70dBm@10% PER

130M: -78dBm@10% PER

54M: -74dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -93dBm@8% PER
