TP-LINK TL-WR845N - Router

WIRELESSStandardsWi-Fi 4

IEEE 802.11n/b/g 2.4 GHzWiFi SpeedsN300

2.4 GHz: 300 Mbps (802.11n)WiFi Range2 Bedroom Houses3× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areasWiFi CapacityLegacyWorking ModesRouter Mode

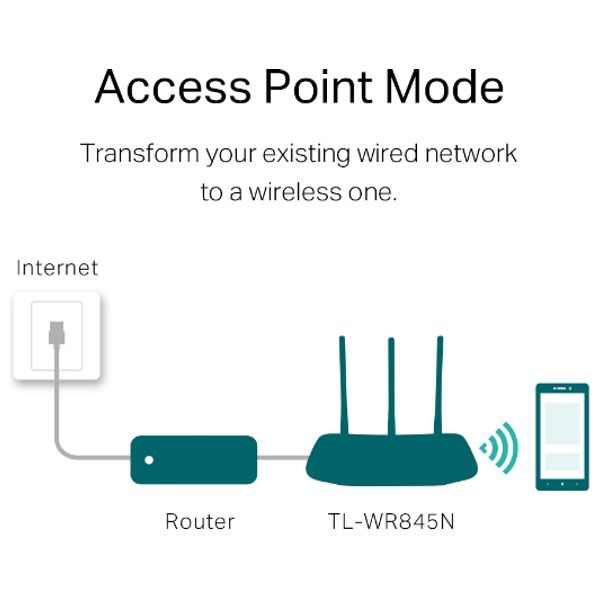

Access Point Mode

Range Extender Mode

WISP ModeSECURITYNetwork SecuritySPI Firewall

Access Control

IP & MAC Binding

Application Layer GatewayGuest Network1× 2.4 GHz Guest NetworkWiFi EncryptionWEP

WPA

WPA2

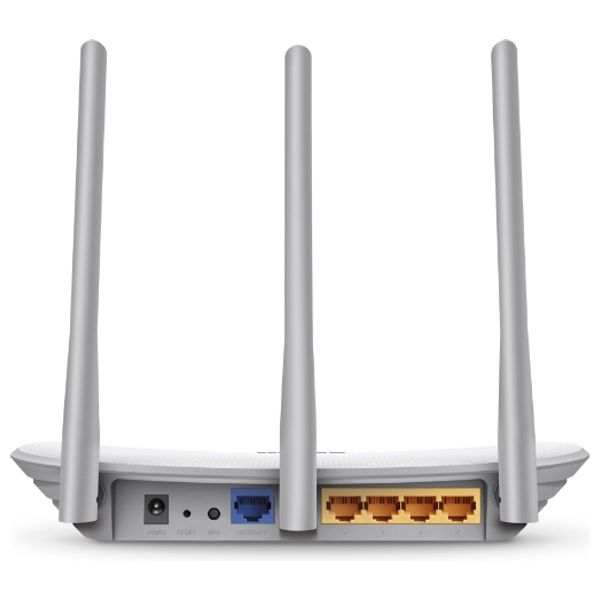

WPA/WPA2-Enterprise (802.1x)HARDWAREProcessorSingle-Core CPUEthernet Ports1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN PortsButtonsWPS Button

Reset ButtonPower9 V ⎓ 0.6 ASOFTWAREProtocolsIPv4

IPv6Parental ControlsURL Filtering

Time ControlsWAN TypesDynamic IP

Static IP

PPPoE

PPTP

L2TPQuality of ServiceQoS by DeviceNAT ForwardingVirtual Server

Port Forwarding

Port Triggering

DMZ

UPnPIPTVIGMP Proxy

IGMP SnoopingDHCPAddress Reservation

DHCP Client List

ServerDDNSNO-IP

DynDNSManagementTether App

Webpage

Check Web Emulator>OTHERSystem RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)CertificationsFCC, CE, RoHSEnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensingTEST DATAWiFi Transmission PowerCE:

<20dBm(2.4GHz)

FCC:

<30dBmWiFi Reception Sensitivity270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -74dBm@10% PER

54M: -77dBm@10% PER

11M: -93dBm@8% PER

6M: -95dBm@10% PER

1M: -98dBm@8% PERPHYSICALDimensions (W×D×H)9.1 × 5.7 × 1.4 in

(230 × 144 × 35 mm)Package ContentsWi-Fi Router TL-WR845N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
