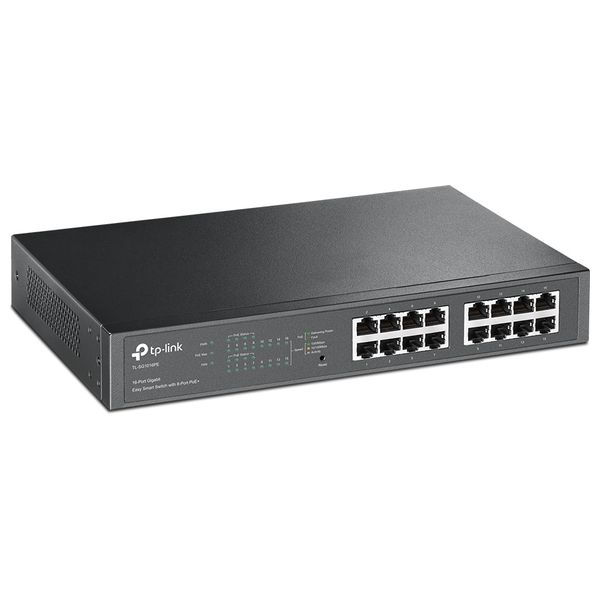

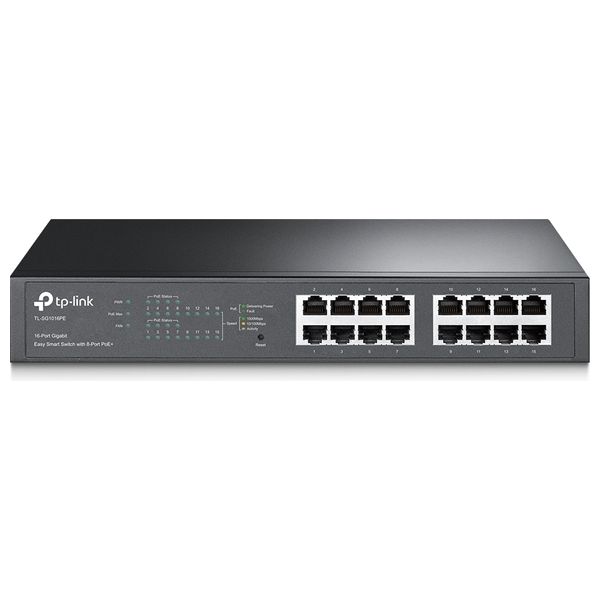

TP-LINK TL-SG1016PE - Hub - 16 Ports

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1pInterface 16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIXNetwork Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)Fan Quantity 1Physical Security Lock YesPoE Ports (RJ45) Standard: 802.3 at (30W)PoE Ports: Port 1- Port 8Total PoE Power Budget: 110WDimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in.(294 × 180 × 44 mm)Mounting 13" and 19" 1U rack mountableMax Power Consumption 14.7W (no PD load)131.4W (with 110W PD load)Max Heat Dissipation 50.2 BTU/h (no PD load)448.4 BTU/h (with 110W PD load)PERFORMANCESwitching Capacity 32GbpsPacket Forwarding Rate 23.8MbpsMAC Address Table 8KPacket Buffer Memory 4.1MbJumbo Frame 9KBSOFTWARE FEATURESQuality of Service Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm ControlL2 Features IGMP Snooping V1/V2/V3Link AggregationPort MirroringCable DiagnosticsLoop PreventionVLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLANManagement Web-based GUIEasy Smart Configuration UtilityPOE Auto RecoveryTransmission Method Store-And-ForwardOTHERSCertification FCC, RoHSPackage Contents TL-SG1016PEPower CordInstallation GuideRackmount KitRubber FeetEnvironment Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
