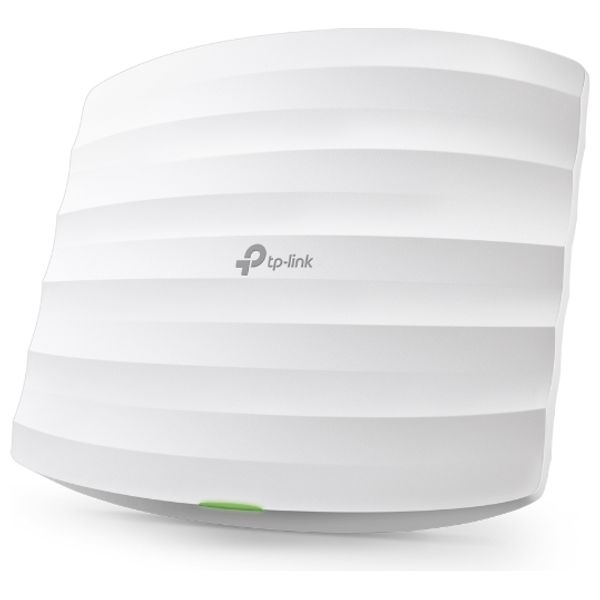

TP-Link EAP115 - WiFi Range Extender

EAP115

300Mbps Wireless N Ceiling Mount Access Point

Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.

Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.

Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

HARDWARE FEATURES

Interface 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)

Button Reset

Power Supply 802.3af PoE or external 9VDC/0.6A power supply

Power Consumption 2.8 W

Dimensions ( W x D x H ) 7.5×6.7×1.2 in (189.5×170.5×29.7mm)

Dimensions 7.5×6.8×1.2 in (189.4×172.3×29.5mm)

Antenna Type Internal 2× 4 dBi Omni

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Client Capacity 100+**

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.4–2.4835 GHz

Signal Rate • 11n: Up to 300Mbps(dynamic)

• 11g: Up to 54Mbps(dynamic)

• 11b: Up to 11Mbps(dynamic)

Reception Sensitivity • 300M: -71dBm@10% PER

• 150M: -75dBm@10% PER

• 54M: -78dBm@10% PER

• 11M: -93dBm@8% PER

• 6M: -92dBm@10% PER

• 1M: -96dBm@8% PER

Wireless Functions • Multiple SSIDs (Up to 8 SSIDs)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication

• Access Control

• Wireless MAC Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power • CE:

≤19 dBm (EIRP)

• FCC:

≤21 dBm

MANAGEMENT

Omada App Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

OTHERS

Certification CE, FCC, RoHS

Package Contents • 300Mbps Wireless N Ceiling Mount Access Point EAP115

• Power Adapter

• Mounting Kits

• Installation Guide

System Requirements Microsoft Windows 10/8/7/Vista/XP

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.
