TP-Link Deco S7 - WiFi Range Extender - 3 Pieces

Deco S7 New

AC1900 Whole Home Mesh Wi-Fi System

1900 Mbps WiFi Speed – Enjoy binge watching your favorite series in 4K with combined speeds of up to 1900 Mbps (600 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz ) with 3×3 MU-MIMO technology.† ‡

Connect 100+ Devices – Deco handles traffic from even the busiest of networks, providing lag-free connections for over 100 devices.†

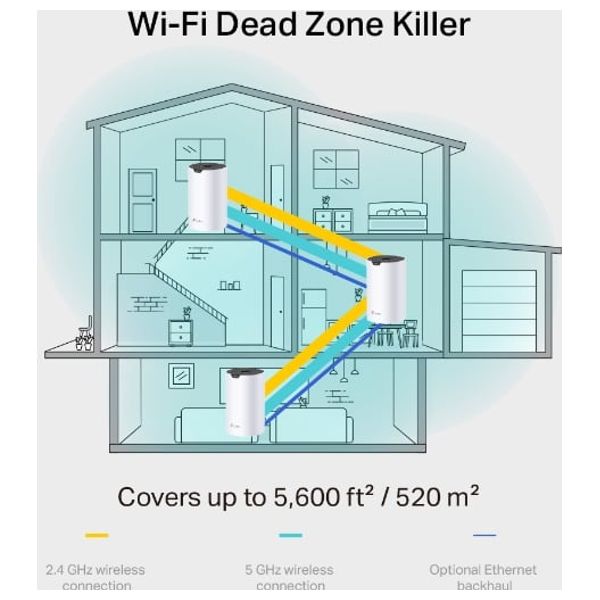

Boosted Seamless Coverage – With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds. §

Full Gigabit Ethernet – 3× Gigabit WAN/LAN Ethernet ports provide solid internet access at high speeds.△

Robust Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.

Two Modes in One – Works as a router or access point for a flexible home network.

Easy Setup – Setup is easier than ever with the Deco app there to walk you through every step.

WIRELESS

Standards and Protocols Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1900

5 GHz: 1300 Mbps (802.11ac)

2.4 GHz: 600 Mbps (802.11n)

WiFi Range 3-5 Bedroom Houses (3-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul works together to link Deco units to provide seamless coverage

3× Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode

Access Point Mode

SECURITY

Network Security SPI Firewall

Access Control

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption WPA-Personal

WPA2-Personal

HARDWARE

Ethernet Ports 3× Gigabit Ports

*Per Deco Unit

Supports WAN/LAN auto-sensing

Buttons Reset Button

SOFTWARE

Protocol IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Type Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

Management Features Deco App

TEST DATA

WiFi Transmission Power CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm (2.4 GHz)

<30 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H) 6.4 × 3.6 × 3.6 in

(162.3 × 90.7 × 90.7 mm)

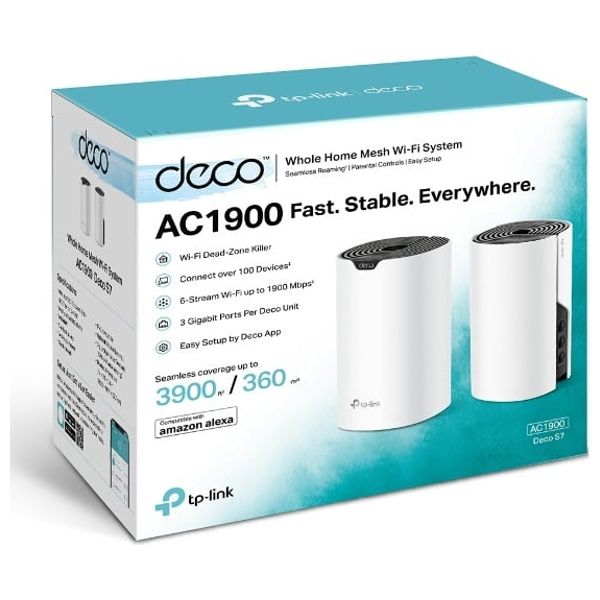

Package Content Deco S7 (3-pack)

3 Deco S7 Units

1 RJ45 Ethernet Cable

3 Power Adapters

Quick Installation Guide

Deco S7 (2-pack)

2 Deco S7 Units

1 RJ45 Ethernet Cable

2 Power Adapters

Quick Installation Guide

Deco S7 (1-pack)

1 Deco S7 Unit

1 RJ45 Ethernet Cable

1 Power Adapter

Quick Installation Guide

OTHERS

Certification CE, FCC, RoHS, NCC, BSMI, JRF, JPA, VCCI

System Requirements Android 5.0 or later

iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
