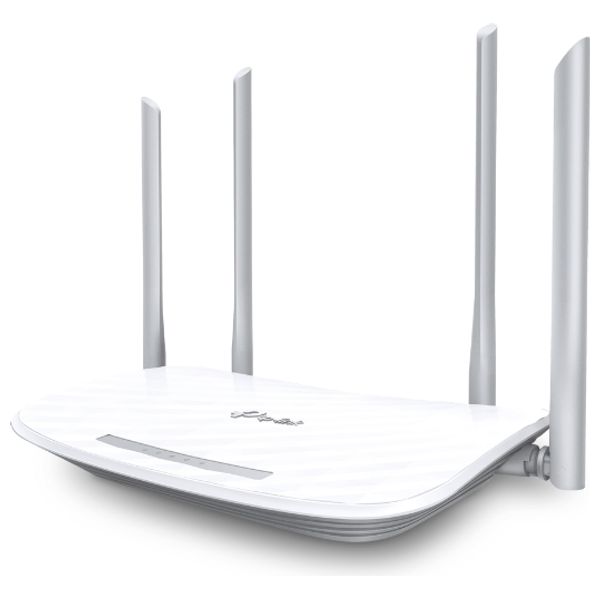

TP-LINK ARCHER C50 - Router

WIRELESSStandardsWi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHzWiFi SpeedsAC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)WiFi Range3 Bedroom Houses4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi rangeWiFi CapacityMediumDual-Band

Allocate devices to different bands for optimal performance

2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working ModesRouter Mode

Access Point Mode

Range Extender ModeSECURITYNetwork SecuritySPI Firewall

Access Control

IP & MAC Binding

Application Layer GatewayGuest Network1× 5 GHz Guest Network

1× 2.4 GHz Guest NetworkWiFi EncryptionWPA

WPA2

WAP3

WPA/WPA2-Enterprise (802.1x)HARDWAREProcessorSingle-Core CPUEthernet Ports1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN PortsButtonsWPS/Wi-Fi Button

Power On/Off Button

Reset ButtonPower9 V ⎓ 0.85 ASOFTWAREProtocolsIPv4

IPv6Parental ControlsURL Filtering

Time ControlsWAN TypesDynamic IP

Static IP

PPPoE

PPTP

L2TPQuality of ServiceQoS by DeviceNAT ForwardingPort Forwarding

Port Triggering

DMZ

UPnPIPTVIGMP Proxy

IGMP Snooping

Bridge

Tag VLANDHCPAddress Reservation

DHCP Client List

ServerDDNSNO-IP

DynDNSManagementTether App

Webpage

Check Web Emulator>OTHERSystem RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)CertificationsFCC, CE, RoHSEnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensingTEST DATAWiFi Transmission PowerCE EIRP:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<30dBm(2.4GHz & 5GHz)WiFi Reception Sensitivity5GHz:

11a 54M: -73dBm

11ac VHT20 MCS8: -68dBm

11ac VHT40 MCS9: -64dBm

11ac VHT80 MCS9: -60dBm

2.4GHz:

11g 54M: -76dBm

11n HT20 MCS7: -74dBm

11n HT40 MCS7: -71dBmPHYSICALDimensions (W×D×H)9.1 × 5.7 × 1.5 in

(229.9 × 144.2 × 36.9 mm)Package ContentsWi-Fi Router Archer C50

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
