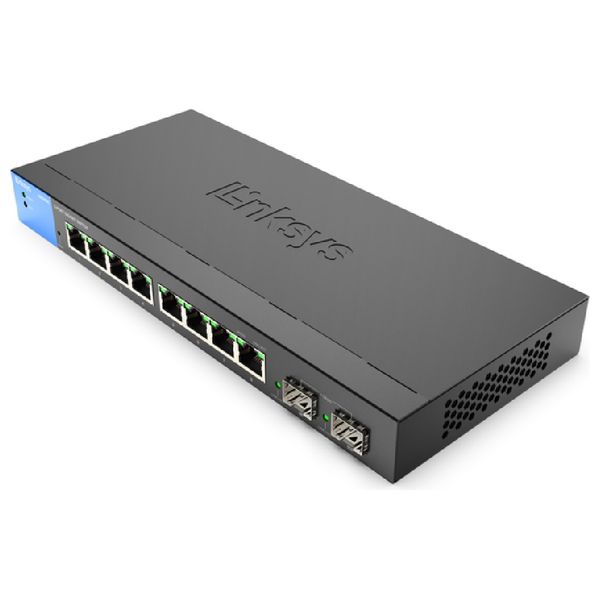

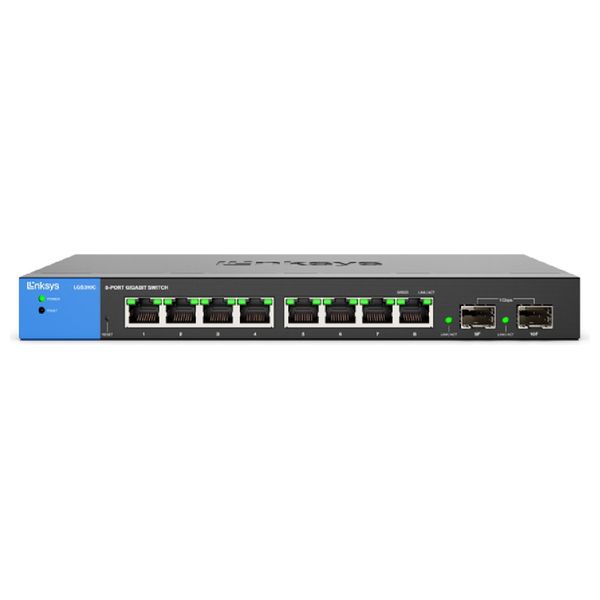

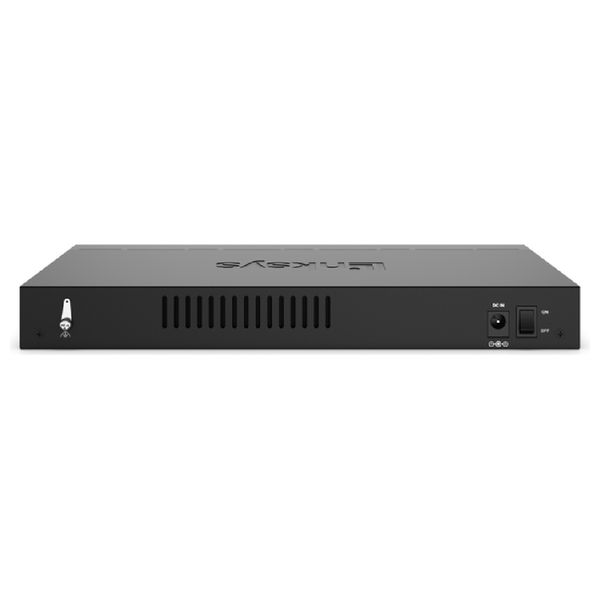

LINKSYS LGS310C - LAN Hub

Power Consumption

• 6.54W

 Jumbo Frame (FE, GE)

• 8K

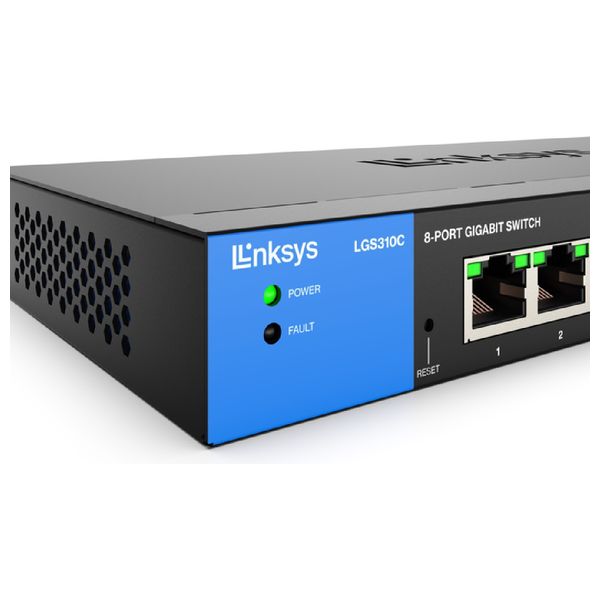

 LEDs

• Power, Fault

 VLAN

• Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support

 Memory

• 256MB

 Forwarding Rate

• 14.88 Mpps

 Dimensions (LxWxH)

• (9.45 x 4.13 x 1.06 in)
• 240 x 105 x 27 mm

 Weight

• 609 g (1.34 lb)

 Number of VLANs Supported

• 256 active VLANs (4,096 range)

 Operating Humidity

• 10 to 90% RH

 Operating Temperature

• 0 to 50°C (32 to 122°F)

 Ports

• 2 Gigabit SFP
• 8 Gigabit Ethernet

 Security Features

• 802.1x Radius authentication
• DHCP snooping
• DOS Attack Prevention
• IP-MAC binding
• Port Isolation (Protected Ports)
• Port Security (256 max entries per port)

 Rate Limiting

• Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps

 Power Input

• 12V/1A

 Spanning Tree

• IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)

 Quality Of Service

• 8 hardware queues
• Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
• Strict, Weighted Round Robin (WRR)

 Storage Temperature

• 0 to 50°C (32 to 122°F)

 Warranty and Support

• 2 Year Warranty (Australia and New Zealand)
• 5 Year Warranty (most countries)

 RMON

• Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny

 MAC Address Table Size

• 8K

 Switching Capacity

• 20 Gbps

 HOL Blocking Prevention

• Head of line (HOL) blocking prevention

 Auto Voice VLAN

• Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

 Other Management

• Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP

 Link Aggregation

• IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group

 Access Control

• Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny

 Storm Control

• Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps

 Management Interface

• HTTP
• HTTPS

 Routing

• Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)

 SNMP

• Version 1
• Version 2c
• Version 3

 Storage Humidity

• 5 to 95% RH (non-condensing)

 IGMP Snooping

• IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

 Power Saving

• EEE

 Port Mirroring

• Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer

 Firmware Upgrade

• Web Browser (HTTP/HTTPS)
