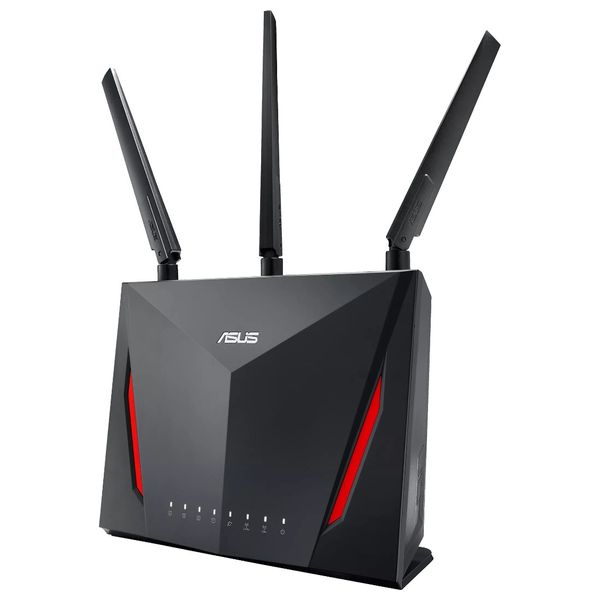

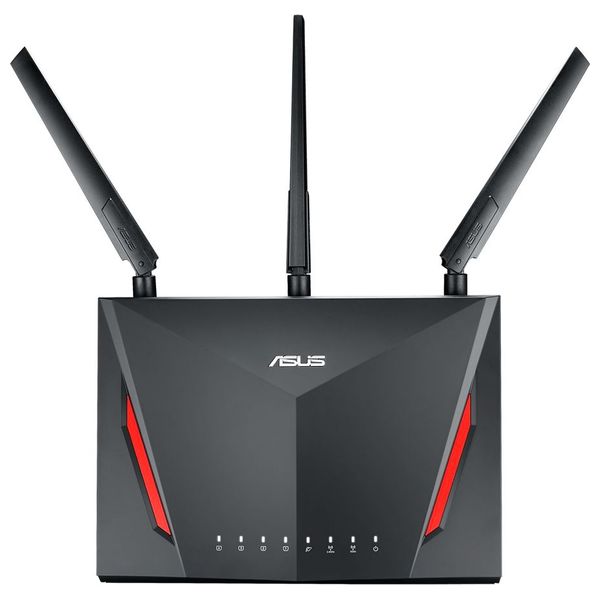

Asus RT-AC86U - Router - Black

Model

RT-AC86U

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

IPv4

IPv6

Product Segment

AC2900 ultimate AC performance : 750+2167 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 4 (802.11n) : up to 450 Mbps

WiFi 5 (802.11ac) : up to 1734 Mbps

1024QAM (2.4GHz) : up to 750 Mbps

1024QAM (5GHz) : up to 2167 Mbps

Antenna

External detachable antenna x 3

Internal antenna x 1

Transmit / Receive

MIMO technology

2.4GHz 3x3

5GHz 4x4

Processor

1.8 GHz dual-core processor

Memory

256 MB Flash, 512 MB RAM

Boosts Speed

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Operating Mode

Accesspoint, AiMeshnode, Mediabridge, Repeater, Router

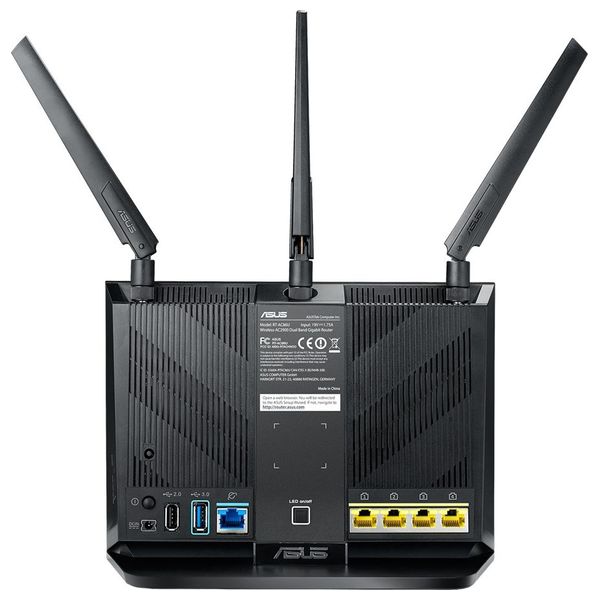

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4

USB 2.0 x 1

USB 3.0 x 1

Buttons

WPS Button, Reset Button, Power Button, Wireless on/off Button

LED Indicator

Power x 1

Wi-Fi x 2

WAN x 1

WPS x 1

LAN x 4

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 1.75 A current

Product Weight (g)

872 g

Product Dimensions

220 x 157 x 89 ~ mm (WxDxH)

AiMesh

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game

Game Boost / Acceleration

Parental Control

"Allow you to block access to unwanted websites and apps."

Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3

Guest Network Connection Time Limit

Guest Network Encryption : Open system, WPA/WPA2-Personal

Security

AiProtection

Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

WPS

SSH

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

Traffic Control

Adaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

-- Maximum Traditional QoS Rule : 32

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN

3G / 4G LTE dongle

Port forwarding

• Maximum Port Forwarding Rule : 64

Port triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server

IGMP Snooping

IPTV

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 64

Wake on LAN (WOL)

Wireless

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

HDD Hibernation

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

Administration

Configuration Backup and Restore

Diagnosis tools

Feedback System

System Log
