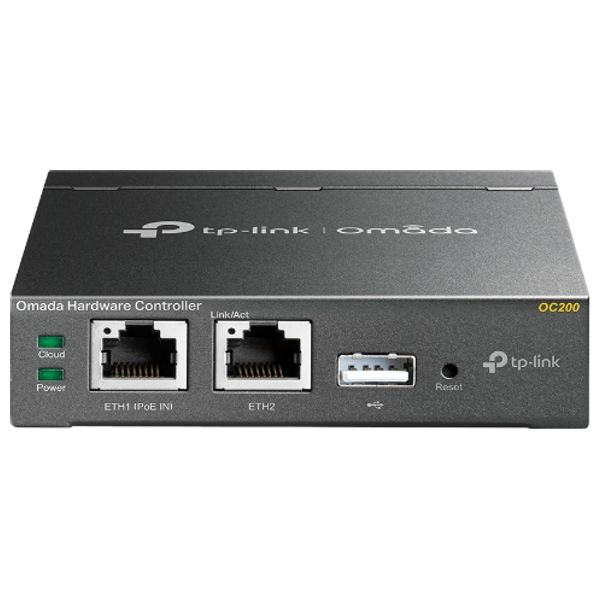

TP-Link OC200- Omada Hardware Controller

OC200

Omada Hardware Controller

Centralized Management: Supports up to 100 Omada access points, 10 Omada routers, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs†

Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.

On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.

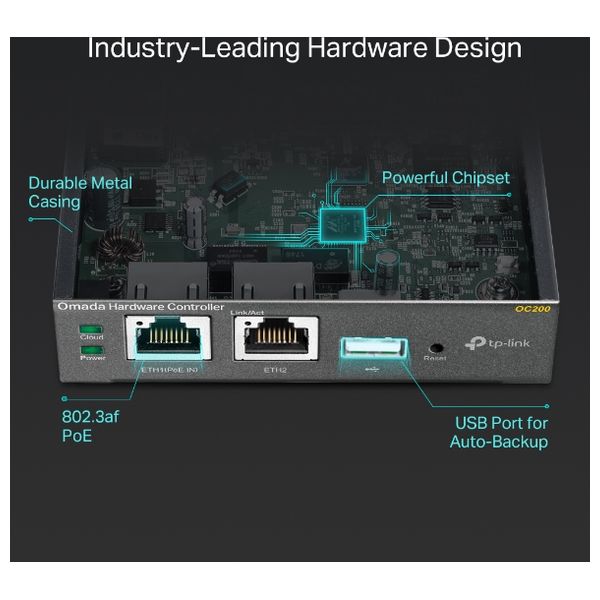

Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.

Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.

Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.

Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.

Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.

HARDWARE FEATURES

Interface • 2× 10/100 Mbps Ethernet Port

• 1× USB 2.0 Port

• 1× Micro USB Port

Power Supply 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A）

Dimensions 3.9×3.9×1.0 in (100×98×25 mm)

MANAGEMENT

Omada App Yes

Centralized Management • 100 Omada access points

• 10 Omada routers

• A maximum of 20 Omada switches†

• A maximum of 2 certain DeltaStream GPON OLTs†

Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC200

†The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.

Cloud Access Yes

L3 Management Yes

Multi-site Management Yes

Management Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS

Package Contents • Omada Hardware Controller OC200

• Quick Installation Guide

• Ethernet Cable

System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
