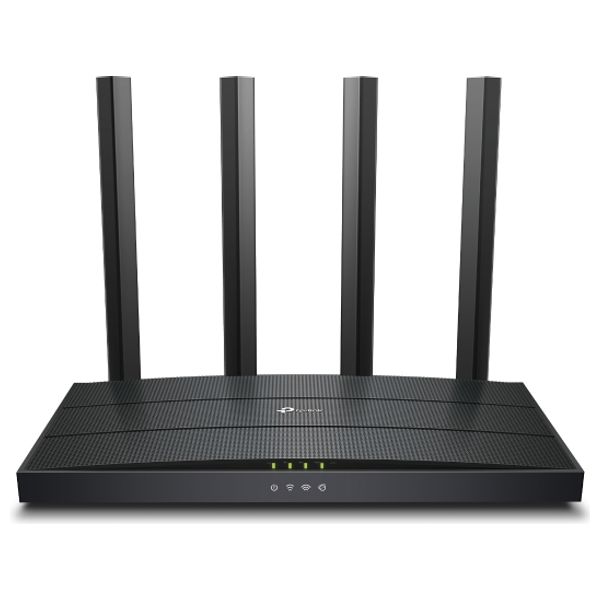

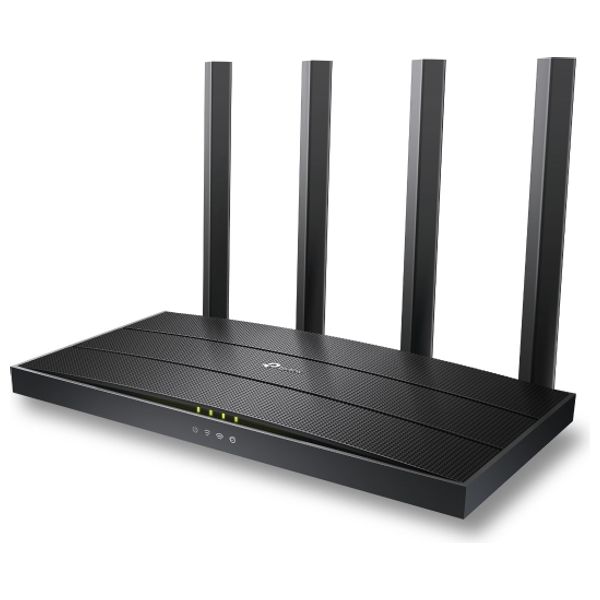

TP-LINK AX12 /AX1500 - Router

WIRELESSStandardsWi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHzWiFi SpeedsAX1500

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 300 Mbps (802.11n)WiFi Range2-3 Bedroom Houses4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi rangeWiFi CapacityHighDual-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

4 Streams

Connect your devices to more bandwidthWorking ModesRouter Mode

Access Point ModeSECURITYNetwork SecuritySPI Firewall

Access Control

IP & MAC Binding

Application Layer GatewayGuest Network1× 5 GHz Guest Network

1× 2.4 GHz Guest NetworkVPN ServerOpenVPN

PPTPWiFi EncryptionWPA2-PSK

WPA2-PSK/WPA-PSK

WPA3-Personal

WPA3-Personal/WPA2-PSK

WPA2-Enterprise

WPA/WPA2-Enterprise encryptions

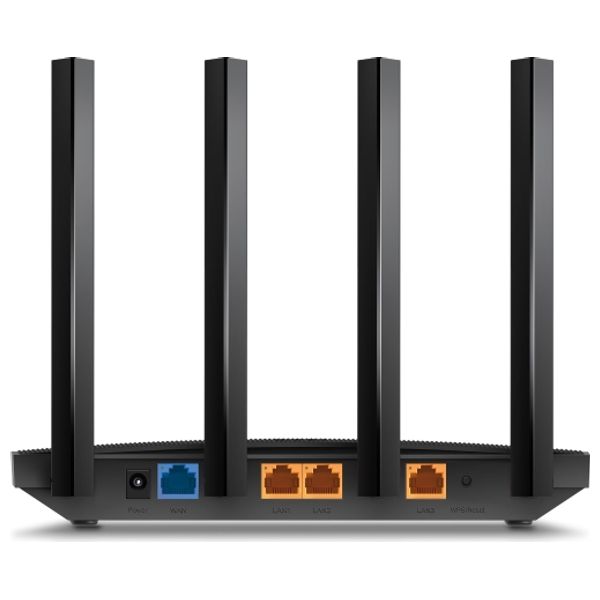

HARDWAREEthernet Ports1× Gigabit WAN Port

3× Gigabit LAN PortsButtonsWPS/Reset Button

Power12 V ⎓ 1 ASOFTWAREProtocolsIPv4

IPv6Parental ControlsURL Filtering

Time ControlsWAN TypesDynamic IP

Static IP

PPPoE/PPTP(Dual Access)/L2TP(Dual Access)Quality of ServiceQoS by DeviceCloud ServiceAuto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNSNAT ForwardingPort Forwarding

Port Triggering

DMZ

UPnPIPTVIGMP Proxy

IGMP Snooping

Bridge

Tag VLANDHCPAddress Reservation

DHCP Client List

ServerDDNSTP-Link

NO-IP

DynDNSManagementTether App

Webpage

Check Web Emulator>OTHERSystem RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC

OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)CertificationsFCC, CE, RoHSEnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~60℃ (-40℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensingTEST DATAWiFi Transmission PowerCE:

<20dBm(2.4 GHz)

<23dBm(5.15 GHz~5.25 GHz)

FCC:

<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)WiFi Reception Sensitivity5 GHz:

11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm

11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm

11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm

11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm

2.4 GHz:

11g 6Mbps: -96 54Mbps: -80

HT20-MCS0: -97 MCS7: -78

HT40-MCS0: -94 MCS7: -75PHYSICALDimensions (W×D×H)8.5 × 4.6 ×1.3 in

(215 × 117 × 32 mm)Package ContentsWireless Router Archer AX12

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
