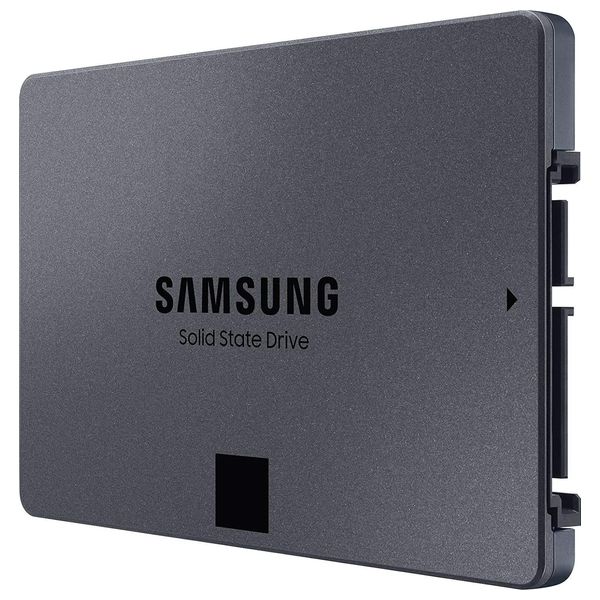

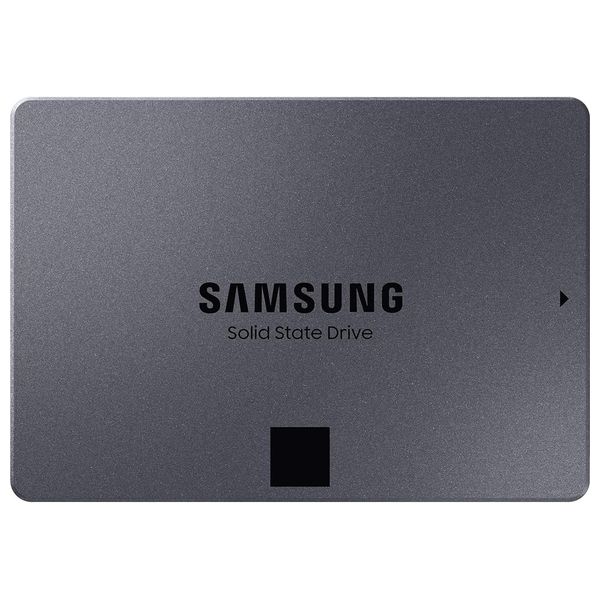

Samsung MZ-77Q2T0BW - 2TB - Internal SSD Hard Drive - Gray

General Feature

• Application
• Client PCs
•  Rated Capacity
• 2,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
•  Form Factor
• 2.5 inch
•  Interface
• SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
•  Dimension (Pack: WxHxD)
• 100 X 69.85 X 6.8 (mm)
•  Weight
• Apporx. 46.0g Weight
•  Storage Memory
• Samsung V-NAND 4bit MLC
•  Controller
• Samsung MKX Controller
•  Cache Memory
• Samsung 2 GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support
• TRIM Supported
•  S.M.A.R.T Support
• S.M.A.R.T Supported
•  GC (Garbage Collection)
• Auto Garbage Collection Algorithm
•  Encryption Support
• AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
•  WWN Support
• World Wide Name supported
•  Device Sleep Mode Support
• Yes

Performance

• Sequential Read
• Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
•  Sequential Write
• Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•  Random Read (4KB, QD32)
• Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•  Random Write (4KB, QD32)
• Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•  Random Read (4KB, QD1)
• Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•  Random Write (4KB, QD1)
• Up to 35,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Environment

• Average Power Consumption (system level)
• Average: 3.0 W *Maximum: 5.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
•  Power consumption (Idle)
• Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
•  Allowable Voltage
• 5V ± 5% Allowable voltage
•  Reliability (MTBF)
• 1.5 Million Hours Reliability (MTBF)
•  Operating Temperature
• 0 - 70 ℃ Operating Temperature
•  Shock
• 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit
• Not Available

Software

• Management SW
• Magician Software for SSD management
