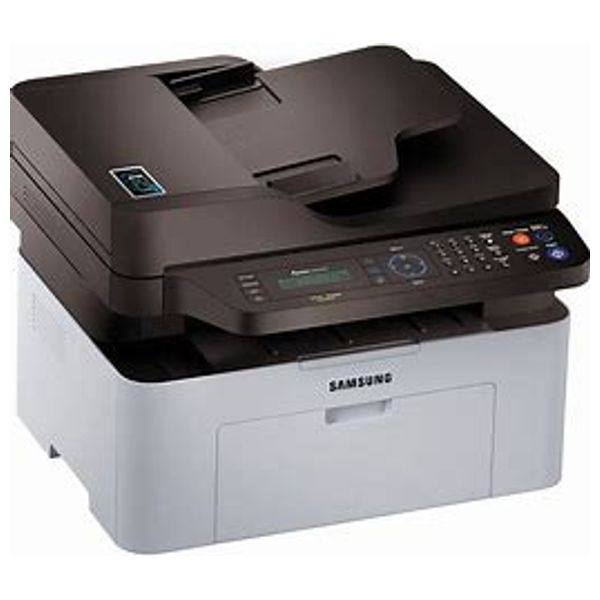

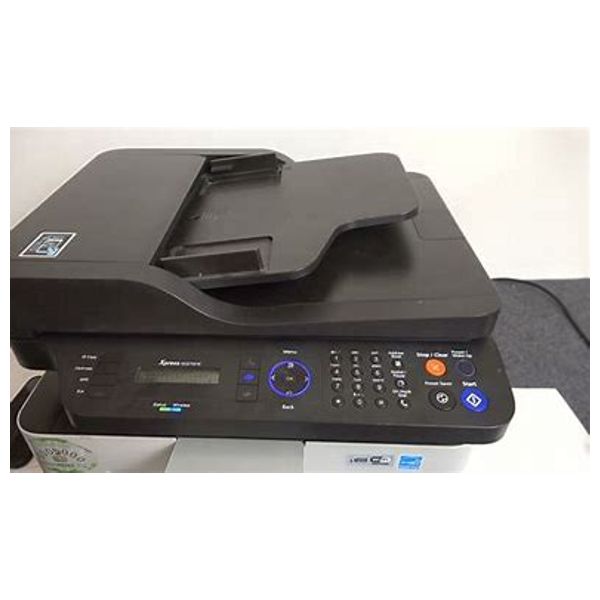

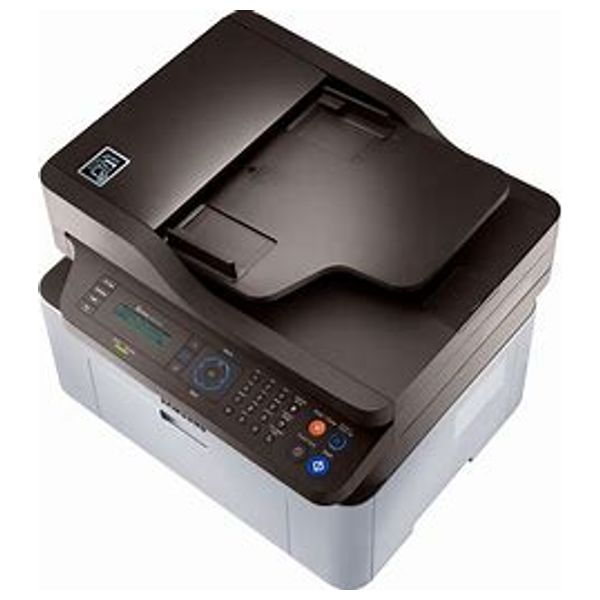

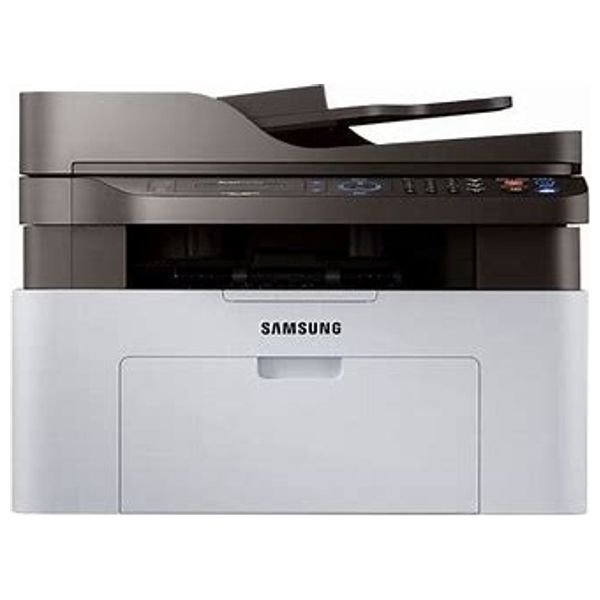

Samsung M2070F - Laser Printer

Functions

Print, copy, scan, fax

Multitasking supported

Yes

Number of print cartridges

1 (black)

Print speed black

Normal: Up to 21 ppm

First page out (ready)

Black: As fast as 8.5 sec

Duty cycle (monthly, letter)

Up to 10,000 pages

Recommended monthly page volume

100 to 1,500

Print technology

Laser

Print quality black (best)

Black: Up to 1,200 x 1,200 dpi Color:

Print languages

SPL

Display

2-line LCD (16 characters per line)

Processor speed

600 MHz

Automatic paper sensor

No

HP ePrint capability

No

Mobile printing capability

Wireless direct printing, Mobile Apps, Samsung Cloud Print, Google Cloud Print™

Wireless capability

Yes, Built in Wi-Fi 802.11 b/g/n; authentication via WEP, WPA/WPA2 Personal; encryption via AES or TKIP

Connectivity, standard

Hi-Speed USB 2.0 port; built-in Fast Ethernet 10/100 Base-TX network port; built-in Wi-Fi 802.11 b/g/n

Network ready

Standard (built-in Fast Ethernet, WiFi 802.11 b/g/n)

Minimum system requirements

Windows® XP (SP3) (32-bit)or newer, 933 MHz processer or higher, 128 MB RAM, 1.5 GB HD space, CD-ROM or Internet, USB or Network connection OSX 10.5 or newer; Internet; USB or Network connection; 1 GB HD space; 1 GB RAM

Compatible operating systems

Windows®: XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64 bit), 2008 server (32/64 bit), 7 (32/64 bit), 2008 Server R2, 10 (32/64 bit), 2012 Server, 2016 Server; MAC OS 10.5 - 10.11; Linux: Red Hat Enterprise Linux (5, 6, 7), Fedora (13, 14, 15, 16, 17, 18, 19, 20, 21, 22), openSUSE (11.3, 11.4, 12.1, 12.2, 12.3, 13.1, 13.2), Ubuntu (10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04), SUSE Linux Enterprise Desktop (11, 12), Debian (6, 7, 8), Mint (13, 14, 15, 16, 17); Unix: Sun Solaris 9, 10, 11 (x86, SPARC), HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium), IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, 7.1 (PowerPC)

Memory

128 MB

Memory, maximum

128 MB

Media sizes supported

Letter, Legal, Executive, Folio, Oficio, Envelope (No.10, Monarch)

Media sizes, custom

3 x 5 to 8.5 x 14 in

Paper handling input, standard

150-sheet input tray, 40-sheet Automatic Document Feeder

Paper handling output, standard

100-sheet output bin

Maximum output capacity (sheets)

Up to 100 sheets

Duplex printing

Manual (driver support provided)

Media types

Plain, Thick, Thin, Cotton, Color, Preprinted, Recycled, Lables, CardStock, Bond, Archive, Envelope

Media weight, supported

16 to 43 lb

Media weights, supported ADF

16 to 28 lb

Scanner type

Flatbed, ADF

Scan file format

PDF, JPG, TIFF

Scan resolution, optical

Up to 1,200 dpi (flatbed); Up to 600 dpi (ADF)

Scan size (ADF), maximum

8.5 x 14 in

Scan size (ADF), minimum

5.7 x 5.7 in

Scan speed (normal, letter)

Up to 17 ipm (black); Up to 6 ipm (color)

Automatic document feeder capacity

Standard, 40 sheets

Digital sending standard features

Scan to WSD, WSD Scan, PC Scan

Scan input modes

Front-panel scan, copy, fax, Samsung Scan software; user application via TWAIN or WIA

Copy speed (normal)

Black: Up to 21 cpm Color:

Copy resolution (black text)

Up to 600 x 600 dpi

Copy reduce / enlarge settings

25 to 400%

Copies, maximum

Up to 999 copies

Faxing

Yes

Fax transmission speed

3 sec per page

Power

110-volt input voltage: 110 to 127 VAC, 50/60Hz and 220-volt input voltage: 220 to 240 VAC, 50/60Hz

Power consumption

310 watts (Printing), 2.1 watts (Power Save), 30 watts (Ready)

Operating temperature range

50 to 86°F

Recommended operating humidity range

20 to 70% RH (non-condensing)

Acoustic power emissions (ready)

3.9 B (A)

Acoustic pressure emissions bystander (active, printing)

50 dB (A)

Minimum dimensions (W x D x H)

15.98 x 14.16 x 12.15 in

Maximum dimensions (W x D x H)

15.98 x 16.59 x 12.15 in

Package dimensions (W x D x H)

17.5 x 18.9 x 16.5 in

Pallet dimensions

38.43 x 35.67 x 99.69 in

Weight

18.85 lb

Package weight

24.9 lb

Pallet weight

578.85 lb

Quantity per pallet

24

Count of layers in pallet

6

Software included

Samsung Common Installer, Total Uninstaller, SPL print driver, TWAIN/WIA driver, PC Fax Utility, Easy Printer Manager, Easy Document Creator, Scan OCR program, Printer Diagnostics, Printer Center, View User's Guide, Lite SM
