NETUM NT-1202W - Wired and Wireless QR Code Barcode Reader

NETUM NT-1202W Industrial Barcode Reader, DPM,QR Code and Data Matrix Barcode Scanner

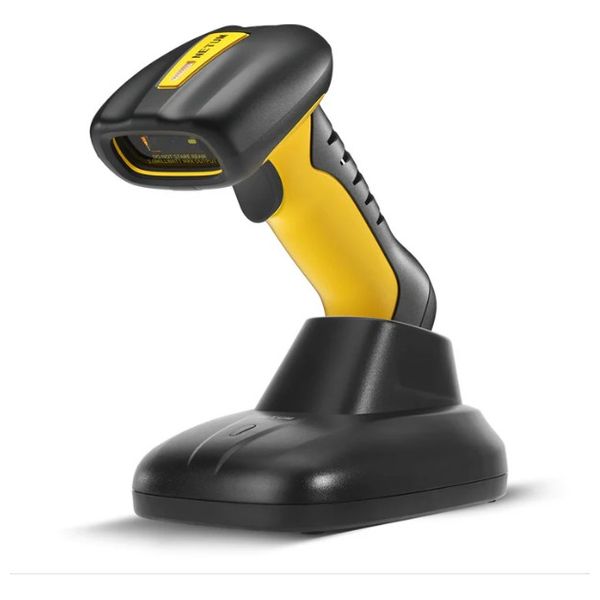

NETUM NT-1202W Upgraded QR Industrial Bluetooth Barcode Scanner with Charging Dock

Superior Scanning Performance

NETUM NT-1202W Barcode Scanner is equipped with advanced 1280H × 1024V pixels(1.3M) CMOS sensor. With high-speed global exposure, the scanning speed is faster, and Maximum frame rate 120FPS. it can read all kinds of small barcodes smoothly(1D: ≥3 mil ; 2D: ≥5 mil(HD); 2D: ≥7 mil(SR)).

It can be widely used in electronics manufacturing, photovoltaic, new energy, medical and inspection equipment, intelligent manufacturing.

Connect via 2.4G Wireless & Bluetooth

NETUM NT-1202W barcode scanner works with 2.4G wireless and Bluetooth transmission. The cradle has a built in 2.4G receiver that makes the scanner completely plug-n-play, Connect the scanner to your device via Bluetooth, Support HID / SPP / BLE mode, Easily connected with your laptop, PC, smartphones, tablet, iphone, ipad, POS.

Automatic Scanning & Storage Mode

NT-1202W QR 2D Bluetooth wireless barcode scanner have three scanning modes: manual trigger mode, continuous scanning mode and auto-sensing scanning mode. hand free and handheld operation. In addition, there is a storage mode. Storage mode can be used when you are out of range of Bluetooth and wireless connectivity. Supports storage of up to 100,000 barcodes. Note: Before use, you need to scan the corresponding setting barcode on the manual.

Wireless

Radio Technology 2.4GHz, Bluetooth

Communication Distance 30-100m (line of sight)

Battery 2600mAh

Expected Battery Life 20 hours of continuous operation

Expected Charge Time 4 hours

Flash Memory 2MB

Performance

Sensor Revolution 1280H × 1024V pixels

Adaptive Field of View Maximum Horizontal: 42°, Maximum Vertical: 40°

Scanning angle left and right ±60°, up and down ±60°, rotate 360°

Printing contrast ≥20% (UPC/EAN 100%, PCS 90%)

Lighting white glare

Focus Red dot LED aiming

Reading Accuracy 1D : ≥3mil ; 2D : ≥5mil(HD); 2D : ≥7 mil(SR)

Decode Ranges (Typical)

QR (5mil) 65mm~105mm

Code39(3mil) 45mm~160mm

Code39(5mil) 35mm~250mm

EAN(13mil) 40mm~420mm

Symbologies

2D: Data Matrix , QR Code , Micro QR，PDF417, Micro PDF417 ，Aztec , MaxiCode.

1D: UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93, Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 IATA 2 of 5，Matrix 2 of 5，Straight 2 of 5，Pharmacode，GS1 DataBar 14，GS1 DataBar Expanded，GS1 DataBar Limited，Composite Code A, Composite Code B, Composite Code C.

Physical

Dimensions (L×W×H) Scanner: 88.0×70.0×178.0mm Cradle: 167.0×105.5×75.2mm

Weight Scanner: 230g, Cradle: 126g

Notification Beep, LED, vibration

Working voltage DC 3.3V±5%

Operating current 260 mA ±5% (typical), 380 mA ±5% (maximum)

Safety Regulations EMC CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
