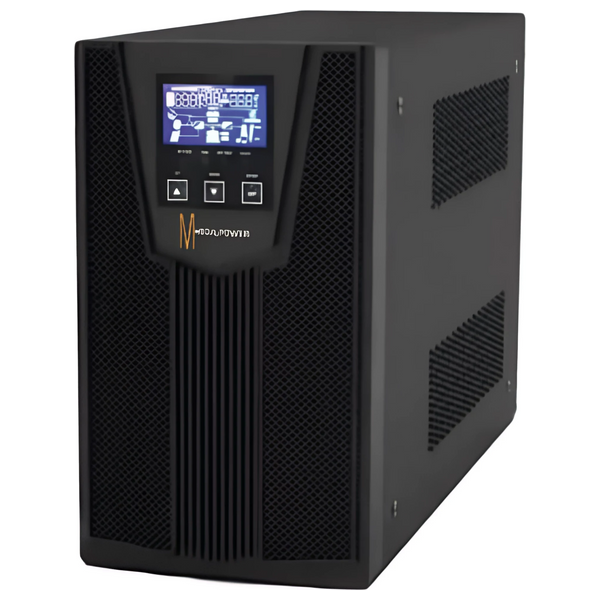

Medal power UPS - MPUPS2KV - Black

Medal Power online UPS2KV/1.6KW

MP-OU2KVA#4B9T,Input 220vac,50/60Hz ,output 220vac

Electrical specifications

Model 1K(S) 2K(S) 3K(S)

Capacity 2000VA/1600W

Input

Voltage

range

Low Line Transfer

160VAC / 140VAC / 120VAC / 110VAC±5%(Ambient Temp<35°C)

(based on load percentage 100%-80% / 80%-70% / 70-60% / 60%-0)

Low Line Comeback

175VAC / 155VAC / 135VAC / 125VAC±5%(Ambient Temp<35°C)

(based on load percentage 100%-80% / 80%-70% / 70-60% / 60%-0)

High Line Transfer 300VAC±5%

High Line Comeback 290VAC±5%

Frequency Range 40Hz-70Hz

Phase Single phase with ground

Power specifications 0.99@220-230VAC(input voltage)

Output

Output electricity 200/208/220/230/240VAC

Mains voltage range ± 1%(Batt.Mode)

Frequency range

(synchronization range)

47~53Hzor57~63Hz

Frequency range(battery mode) 50Hz±0.25Hz or 60Hz±0.3Hz

Overload

Ambient Temp<35°C:

105%-110%: UPS shuts down after 10 minutes at battery mode or transfer to

bypass when the utility is nomal

110%-130%: UPS shuts down after 1 minute at battery mode or transfer to

bypass when the utility is nomal

>130%: UPS shuts down after 3 seconds at battery mode or transfer to bypass

when the utility is nomal

Peak current ratio 3:1

Harmonic distortion :;;33/o THD(linear load); :;;6%THD(non-linear load)

Transfer

time

AC Mode to Batt. Mode Zero

Inverter to Bypass 4ms(Typical)

Waveform (Batt.Mode) Pure Sinewave

Effectiveness

Mains mode 89%

Battery mode 87%

Standard

Model

Battery model 12V/7AH Number of batteries 4

Recharging current 1A

Charging voltage 54.7VDC±1%

Long-run

Model

Battery model 12V/AH Depends on the buyer

Number of batteries 6

Recharging current SA

Charging voltage 82.1VDC±1%

Exterior

Standard

Model Dimensions

D *W* H(mm)

352X145X213

450X192X335

Long-run

Model

Environmental conditions

Operating humidity 20-90%RH@0-40°C (non-condensing)

Noise Less than 50dBA@1 Meter

Management

Interlligent RS-232 Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC

Optional SNMP Power management from SNMP manager and web browser
