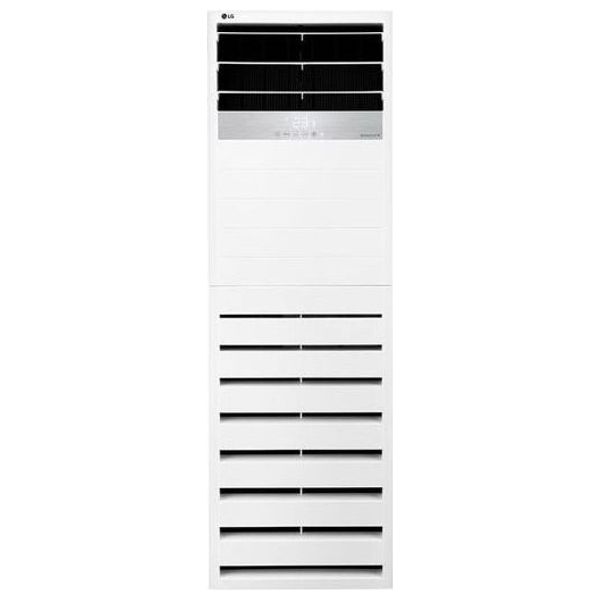

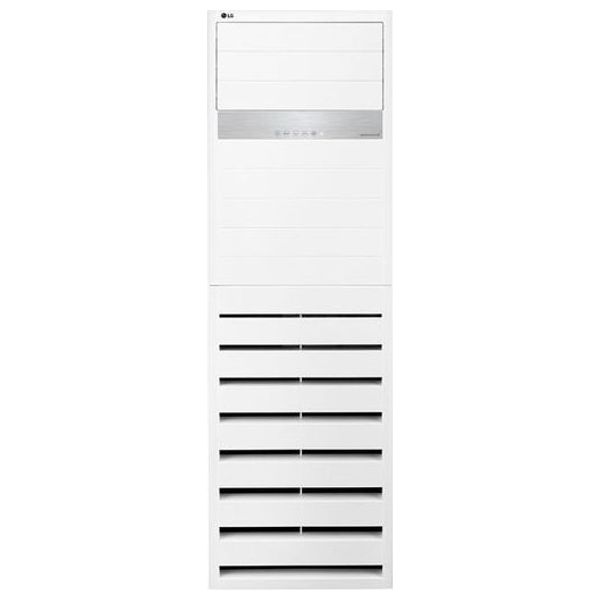

LG APNW50GT3E0 - 4 Ton - Floor Standing Split - White - Inverter - Amp Control

Power Supply 220-240, 1, 50Power Input 200W

Running Current 0.91ADimensions - Body (W x H x D) 590 x 1,840 x 440 mm

23-7/32 x 72-7/16 x 17-5/16 inch

Net Weight - Body - kg (lbs) 47 (103.6)Heat Exchanger - (Row x Column x Fins per inch) x No. (2 x 53 x 67)

Heat Exchanger - Face Area - m2 (ft2) 0.44 (4.74)Fan - Type Sirocco

Fan - Air Flow Rate (SH / H / M / L) 38/33/28/24 m3/min

1,342/1,165/989/848 ft3/minFan Motor - Type External BLDC

Fan Motor - Output (W x No.) 140 x 1Dehumidification Rate - l/h (pts/h) 5.2 (11.0)

Sound Pressure Level - SH/H/M/L 55/52/49/47 dB(A)

OUTDOOR

Capacity - *Cooling, Min.~Rated~Max. 5.6 ~ 14.10 ~ 15.5 kW

19,100 ~ 48,100 ~ 52,900 Btu/hCapacity - **Cooling, Rated~Max. 11.72 ~ 13.48 kW

40,000 ~ 46,000 Btu/h

Capacity - Heating, Min.~Rated~Max. 6.2 ~ 14.65 ~ 16.7 kW

21,200 ~ 50,000 ~ 57,000 Btu/hPower Input - *Cooling, Rated 4.05kW

Power Input - **Cooling, Rated 4.65kWPower Input - Heating, Rated 4.15kW

Running Current - *Cooling, Rated 17.8ARunning Current - **Cooling, Rated 20.3A

Running Current - Heating, Rated 18.2APower Supply 220-240, 1, 50

Wiring Connections - Power Supply Cable (Included Earth) (No. x mm2) 3C x 6.0Dimensions (W x H x D) 950 x 1,380 x 330 mm

37-13/32 x 54-11/32 x 13 inch

Net Weight - kg (lbs) 93.5 (206.1)Compressor - Type Twin Rotary

Compressor - Model (Model x No.) GPT442MAB x 1Compressor - Motor type BLDC

Compressor - Motor Output (W x No.) 4,000 (at 60Hz) x 1Refrigerant - Type R410A

Refrigerant - Precharged Amount - g (oz) 3,400 (119.9)Refrigerant - Chargeless - Pipe Length 5 (16.4)

Refrigerant - Additional Charging Volume - g/m (oz/ft) 40 (0.43)Refrigerant - Control Electronic Expansion Valve

Refrigerant Oil - Type FVC68D (PVE)Refrigerant Oil - Charged volume (cc x No.) 1,300 x 1

Heat Exchanger - (Row x Column x Fins per inch) x No. (2 x 32 x 16) x 2Fan - Type Propeller

Fan - Air Flow Rate (m3/min) 120 x 2Fan Motor - Type BLDC

Fan Motor - Output (W x No.) 124.2 x 2SoundPressure Level - Cooling - Rated 62dB(A)

SoundPressure Level - Heating - Rated 62dB(A)Piping Length - Min./Max. 5 (16.4)/30 (98.4) m (ft)

Maximum Height Difference - Outdoor Unit ~ Indoor Unit - Max. - m (ft) 20 (65.6)
