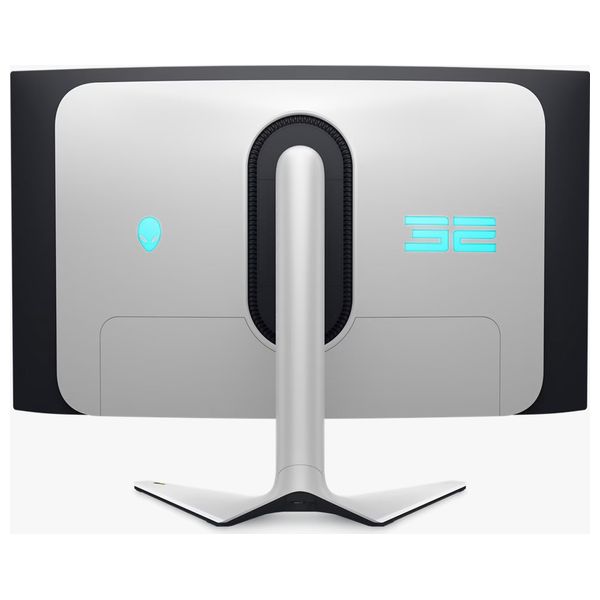

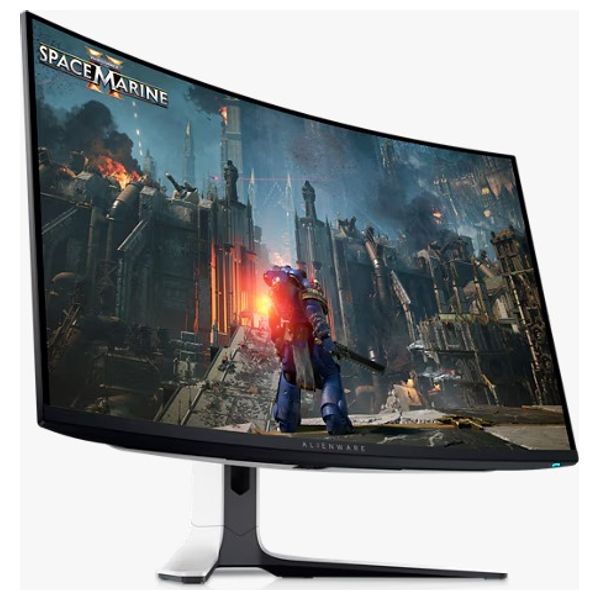

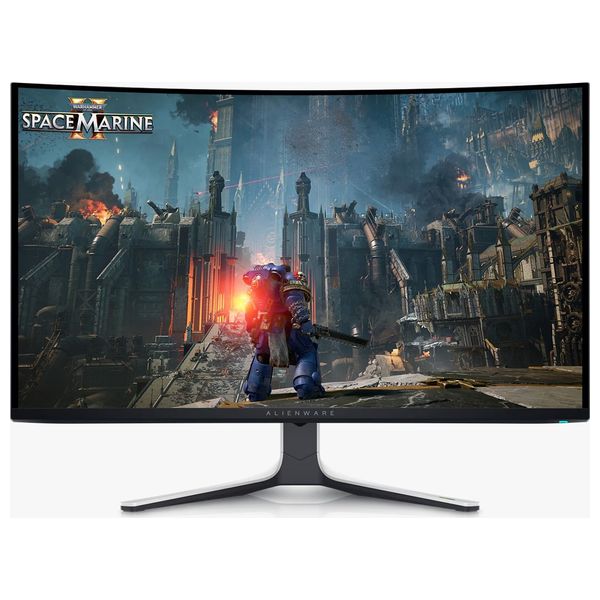

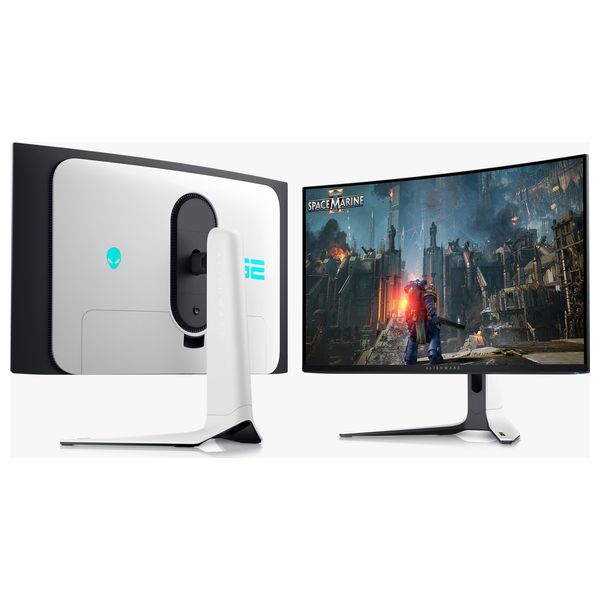

Dell 32-Inch AW3225QF Series - Flat Monitor - 240Hz - 0.03ms Response Time - 4K UHD

Tech Specs

Technical Information

Diagonal Viewing Size

31.6"

Preset Display Area (H x V)

699.48 mm x 394.73 mm

27.54" x 15.54"

276,105.74 mm2 (427.97 inches2)

Panel Type

QD OLED

Display Screen Coating

Anti-reflection

Maximum Preset Resolution

4K UHD 3840 x 2160 at 240 Hz (DSC enabled and visually lossless)

Viewing Angle

178° vertical / 178° horizontal

Pixel Pitch

0.1814 mm x 0.1814 mm

Pixel Per Inch (PPI)

140

Contrast Ratio

1 million: 1 at SDR and HDR

Aspect Ratio

16:9

Backlight Technology

OLED

Brightness

1000 cd/m2 (typical)(HDR peak)

Response Time (typical)

0.03ms (gray-to-gray min.)

Connectivity

Rear

1x DP 1.4 (HDCP 1.4 & 2.3)(Supports up to 3840 x 2160 240 Hz, DSC, HDR)

2 x HDMI 2.1 (HDCP 1.4 & 2.3)(Supports up to 3840 x 2160 240 Hz FRL, HDR, VRR as per specified in HDMI 2.1) (including 1x HDMI 2.1 FRL with eARC - to support Dolby ATMOS signal pass-through)

1 x USB 3.2 Gen 1 (5 Gbps) Type-B upstream port

2 x USB 3.2 Gen 1 (5 Gbps) Type-A downstream ports Bott

Quick Access

1 x USB 3.2 Gen 1 (5 Gbps) Type-C downstream port which supports BC1.2 power-charging

1 x USB 3.2 Gen 1 (5 Gbps) Type-A downstream port

Audio Line Out

No

Built-in Speaker

No

Adaptive-Sync Technology

NVIDIA® G-SYNC® Compatible: Yes (NVIDIA® G-SYNC® Compatible Certification)

AMD Free-Sync™ Premium Technology: No

VESA AdaptiveSync Display Certified : Yes (Supports VESA AdaptiveSync Display)

Lighting

AlienFX Lighting

Adjustability

Height, Tilt, Swivel, Built in cable-management

Height adjustable stand

110 mm

Tilt

-5°/+21°

Swivel

-20°/+20°

Pivot

N/A

Dell Display Manager Compatibility

Yes

Low Blue Light

Yes, ComfortView Plus (Hardware solution)

Flicker-free

Yes

Color Gamut (typical)

DCI-P3 99%

Color Support

1.07 Billion colors

Compliant Standards

Product Safety, EMC and Environmental Datasheets

Dell Regulatory Compliance Home Page

Dell and the Environment

Flat Panel Mount Interface

VESA (100 mm x 100 mm)

Temperature Range

Operating: 0° to 40°C (32° to 104°F)

Non-operating: -20° to 60° (-4° to 140° F)

Humidity Range

Operating: 10% to 80% (non-condensing)

Non-Operating:5% to 90% (non-condensing)

Altitude Operating

Operating: 5,000 m (16,404 ft) max

Non-Operating: 12,192 m (40,000 ft) max

Voltage Required

100 VAC to 240 VAC/50 Hz or 60 Hz + 3 Hz/3 A (typical)

Power Consumption (Off Mode)

0.3 W

Power Consumption (Standby Mode)

0.5 W

Power Consumption (On Mode)

42.5 W

Power Consumption (Max)

190.0 W

Cables Included

1 x Power cable

1 x HDMI 2.1 FRL cable

1 x DisplayPort to DisplayPort 1.4 cable

1 x USB 3.2 Gen 1 (5 Gbps) upstream cable

What's Included

Monitor

Stand riser and base

Microfiber cloth

Quick setup guide

Safety Information

Physical Characteristics

Height with stand (Compressed ~ Extended)

18.61" ~ 22.94"

Width

28.17"

Depth

12.04"

Height without stand

16.61"

Width without stand

28.17"

Depth without stand

4.19"

Weight (panel only - for VESA mount)

13.23 lb

Weight (with packaging)

31.72 lb
