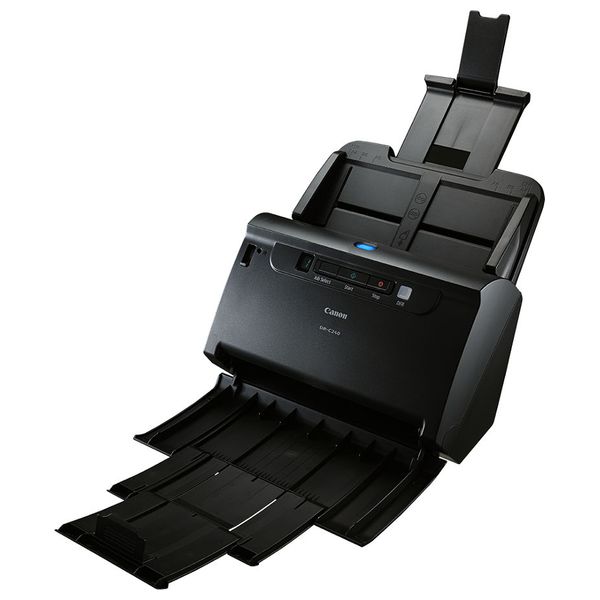

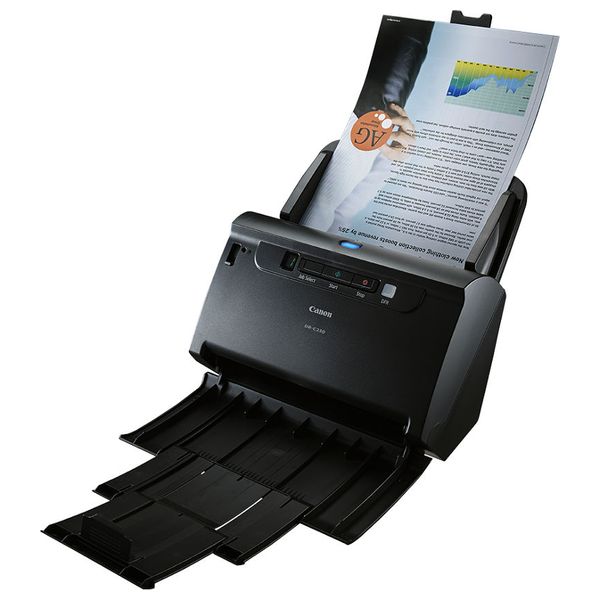

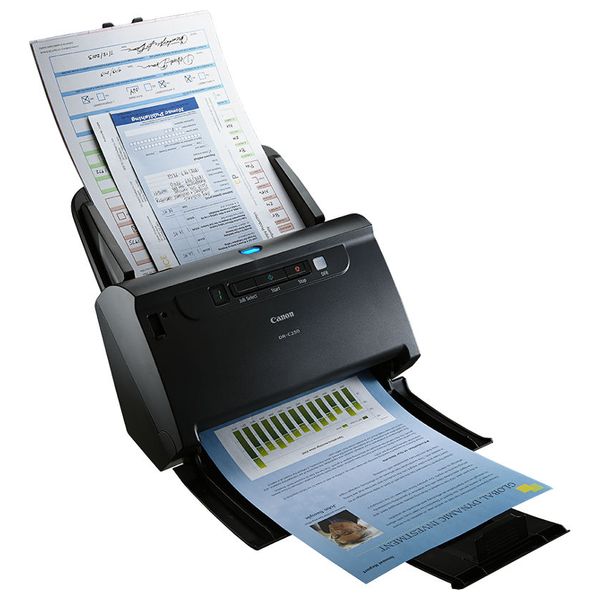

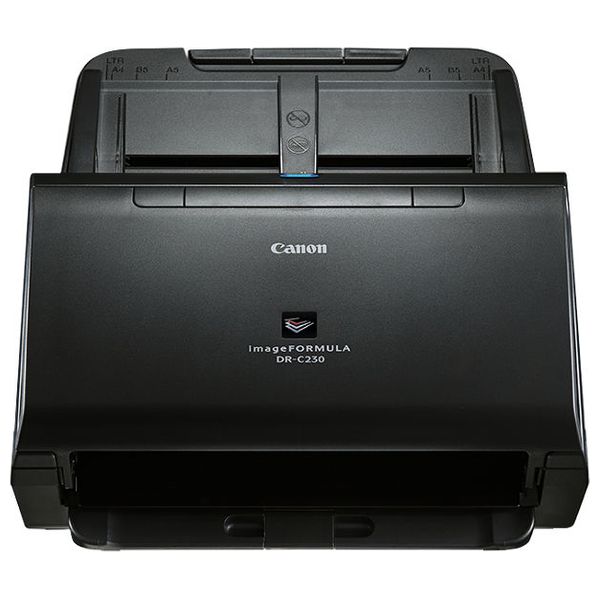

CANON DR-C230 DOCUMENT SCANNER - Scanner

Model Name imageFORMULA DR-C230

Type Office Document Scanner

Document Feeding Automatic or Manual

Document Size Width: 2.0" - 8.5"

Length: 2.1" - 14.0"

Long Document Mode Up to 118.1"

Document Weight 7 lb. - 56 lb. Bond Plain Paper

Feeder Capacity Up to 60 Sheets

Grayscale 8-bit

Color 24-bit

Light Source RGB LED

Scanning Element Contact Image Sensor (CMOS)

Scanning Modes Color, Grayscale, Black and White

Optical Resolution Up to 600 dpi

Output Resolution 100/150/200/240/300/400/600 dpi

Scanning Speeds (Simplex/Duplex):* Black and White/Grayscale/Color: Up to 30 ppm/Up to 60 ipm

Interface Hi-Speed USB 2.0

Dimensions (H x W x D) 9.1" x 11.5" x 10.0" (with trays closed)

Weight 6.17 lb.

Power Consumption 19 W or less (Sleep Mode: 1.4 W or less)

Suggested Daily Volume 3,500 scans**

Bundled Software ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect (windows only), Cardiris (windows only)

Supported Operating Systems Windows 8.1 (32bit/64bit), Windows 10 (32bit/64bit), Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Mac OS 10.13, Mac OS 10.14, Mac OS 10.15

Options Flatbed Scanner Unit 102/201, BarCode Module, 2D Code Module, Exchange Roller Kit (Feed Roller and Retard Roller), Carrier Sheet (Passport), Carrier Sheet (A4), eCarePAK Extended Service

Other Features Auto Color Detection, Auto Page Size Detection, Auto Resolution, Background Smoothing, Deskew, Edge Emphasis, Moiré Reduction, Prevent Bleed-Through/Remove Background, Shadow Cropping, Skip Blank Page, Text Enhancement, Text Orientation Recognition, Three-Dimensional Color Correction, Double-Feed Detection, User Preferences
