GIGABYTE
Product code: B860 EAGLE WIFII6E-6725d21d8efc1f004c681bde

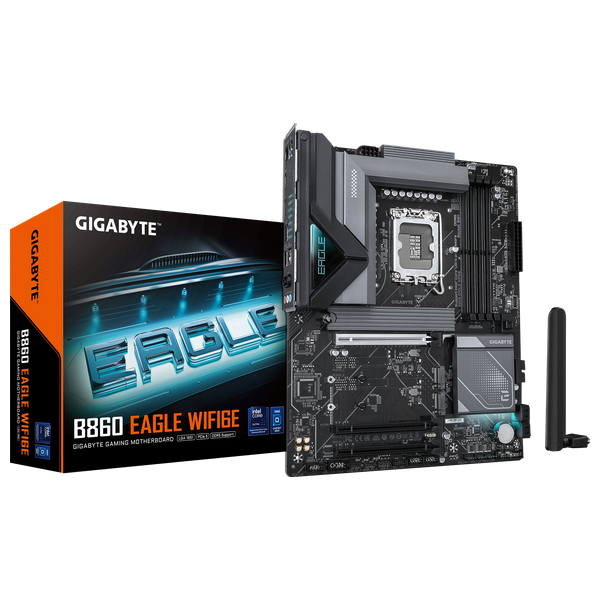

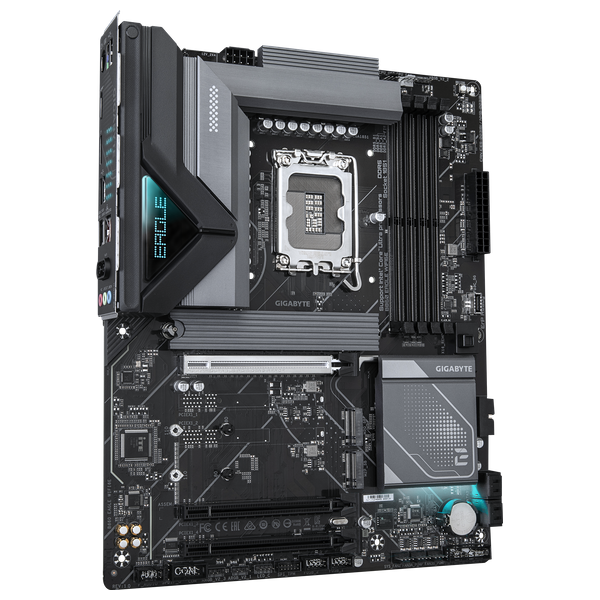

Gigabyte B860 EAGLE WIFII6E - Motherboard

reviews
18%  OFF
225,000 IQD
was 275,000 IQD
Fast Shipping
Fast shipping
Receive your order on time, every time
Always authentic
Always authentic
We only sell 100% authentic products
Easy Return
Easy return
Return policy that lets you shop at ease
Secure Shopping
Secure shopping
Your data will always be protected
Description
  • LGA1851 socket: Support for Intel ® Core™ Ultra Processors
  • (Go to GIGABYTE's website for the latest CPU support list.)
  • L3 cache varies with CPU
  • Chipset
  • Intel ® B860 Express Chipset
  • Memory
  • Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.

  • - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 2.1 version.

  • (Graphics specifications may vary depending on CPU support.)
  • Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • Support for S/PDIF Out
  • LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
  • Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
  • - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • - BLUETOOTH 5.3
  • - Support for 11ax 160MHz wireless standard
  • Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
  • - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • - BLUETOOTH 5.3
  • - Support for 11ax 160MHz wireless standard
  • (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
  • CPU:
  • - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  • Chipset:
  • - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
  • Storage Interface
  • CPU:
  • - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
  • Chipset:
  • - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
  • - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
  • - 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
  • Chipset:
  • - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • - 2 x USB 3.2 Gen 1 ports available through the internal USB headers
  • - 4 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub:
  • - 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 2 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

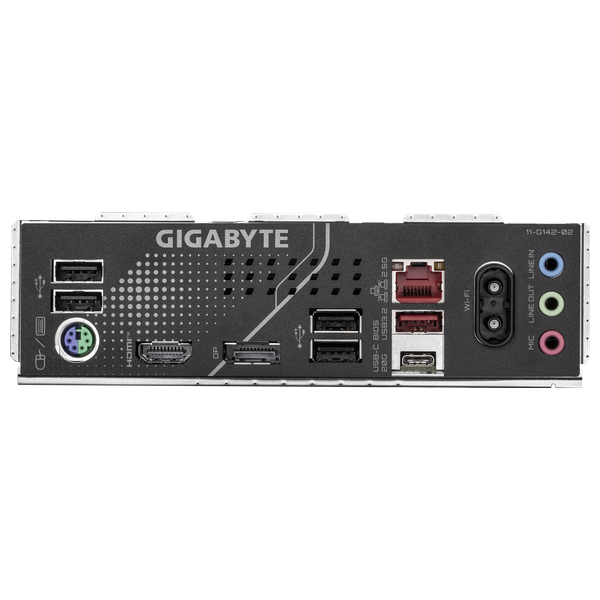

  • Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI port (Note)
  • 1 x DisplayPort (Note)
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 2.0/1.1 ports
  • 2 x antenna connectors (2T2R)
  • 1 x RJ-45 port
  • 3 x audio jacks

  • (Note) Actual support may vary by CPU.
  • I/O Controller
  • iTE®I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
  • BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
  • Bundled Software
  • Norton®Internet Security (OEM version)
  • LAN bandwidth management software
  • Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
  • * The Intel® NPU driver is only supported on Windows 11.
  • Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm


Product Information

Supports Intel® Core™ Ultra processors (2nd series)
12+1+2-phase dual digital VRM solutions
Dual-channel DDR5 memory: 4 DIMMs with XMP support
D5 Bionic Corsa processor for superior memory performance
AI Perfdrive: Provides optimal BIOS presets and customization for users
EZ-Plug Wi-Fi connector: Quick and easy design for installing Wi-Fi antennas
EZ-Latch Plus connector: Screwless, quick-release PCIe and M.2 slots
EZ-Latch Click connector: Screwless M.2 heatsinks
Easy-to-use interface: Multi-featured, AIO fan control, and automatic Q-Flash scanning in BIOS and software
Ultra-fast storage: 3 M.2 slots, including 1 PCIe 5.0 x4 slot
Efficient thermal protection: Advanced thermal protection for VRM and M.2
Fast networking: 2.5GbE LAN and WiFi
Expanded connectivity: HDMI, DisplayPort
