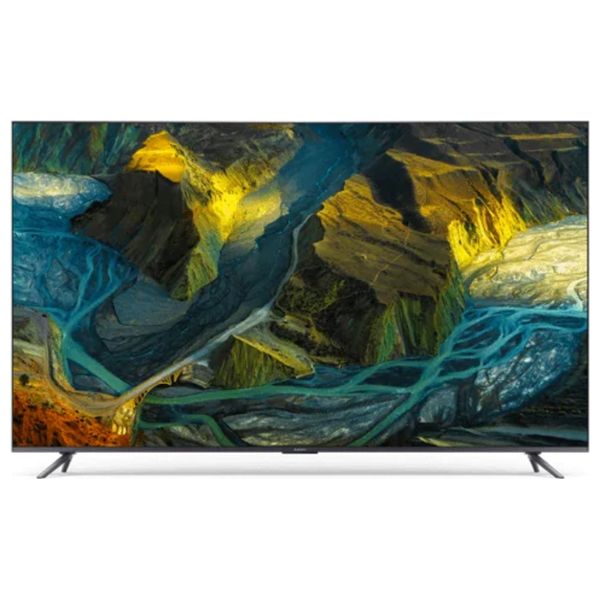

Xiaomi 86-Inch 37291 - Smart - 4K - UHD - 120Hz

Display Type4K UHD

Resolution3,840 x 2,160

Color gamutDCI-P3 90% (typ)

Color depth1.07 billion (8-Bit + FRC)

Refresh rate120Hz

MEMC4K 120Hz

Viewing angle178°(H)/178°(V)

HDR

Dolby Vision IQYes

HDR10+Yes

HLGYes

Xiaomi Tv Max 86

Speaker

Speaker (Sound Output)

15 W + 15 W

Supports Dolby Atmos | DTS®:X

Xiaomi Tv Max 86

System

Android TV™ 11

Xiaomi Tv Max 86

Platform

Processor

MediaTek MT9617

CPU

Quad A73

GPU

Mali G52MC1

Xiaomi Tv Max 86

Smart home

Far-field Google Assistant

* Google Assistant is not available in certain languages and countries. Please refer to Google Assistant official website for more info.

Smart home control hub

Chromecast built-in

Supports Miracast

Xiaomi Tv Max 86

Design

Size

86"

Limitless display with no-bezel

Color

Grey

Stand

Double

Power button

Dimensions

Dimensions including base (L x W x H)

1924.04 x 441.42 x 1181.94mm

Dimensions not including base (L x W x H)

1924.04 x 91.32 x 1102.16mm

Packing size (L x W x H)

2080 x 220 x 1280mm

Weight

Weight including base

44.5kg

Weight not including base:

43.6kg

Packing weight

56.3kg

Wall mount

600*400mm

Material

Frame

Metal

Stand

Metal

Xiaomi Tv Max 86

Connectivity

Bluetooth

Bluetooth 5.0

Wi-Fi

Wi-Fi 6， 2.4GHz/5GHz

HDMI

2.0, 2.1, CEC

USB

2.0 x 2

Composite In (AV)

Yes

CI Slot

Yes*

Ethernet (Lan)

Yes

Optical Digital Audio Out

Yes

3.5mm headphone jack

Yes

Broadcasting system

DVB-T2/C, DVB-S2*

* CI Slot may vary depending on regions

* DVB-T2/C, DVB-S2 may vary depending on regions

Xiaomi Tv Max 86

Power

Power

450W

Voltage

100-240V ~ 50/60Hz

Operating environment

Temperature 0℃～45℃，Humidity 20%～80%

Storage temperature -15℃～45℃，Relative humidity<80%

Xiaomi Tv Max 86

Accessory

360° bluetooth remote control x 1

Screws bag x 1

Stands x 2

Power cable x 1

User manual x 1

Warranty card x 1
