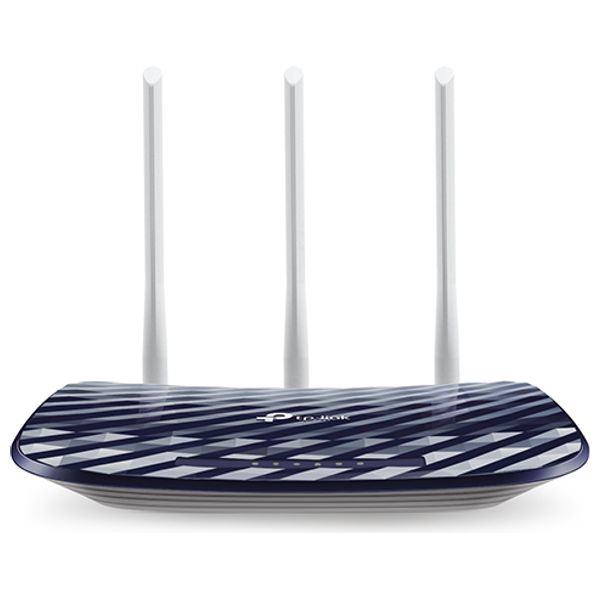

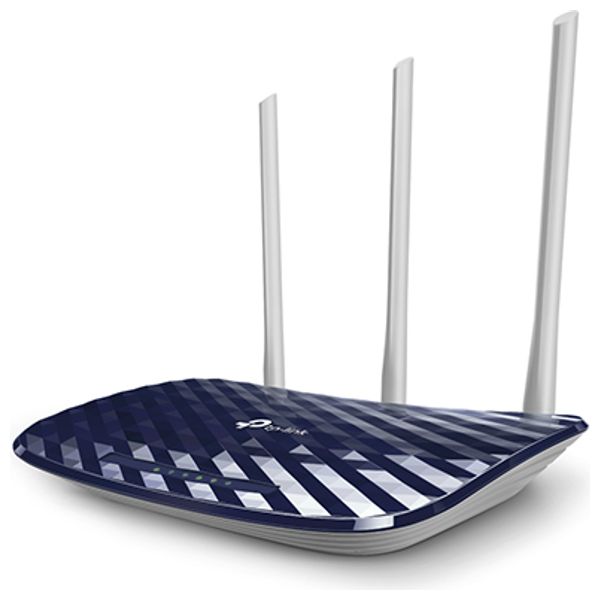

TP-LINK AC750 ARCHER C20 - Router

WIRELESSStandardsWi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHzWiFi SpeedsAC750

5 GHz: 433 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)WiFi Range2 Bedroom Houses3× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areasWiFi CapacityMediumDual-Band

Allocate devices to different bands for optimal performanceWorking ModesRouter Mode

Access Point Mode

Range Extender ModeSECURITYNetwork SecuritySPI Firewall

Access Control

IP & MAC Binding

Application Layer GatewayGuest Network1× 5 GHz Guest Network

1× 2.4 GHz Guest NetworkWiFi EncryptionWEP

WPA

WPA2

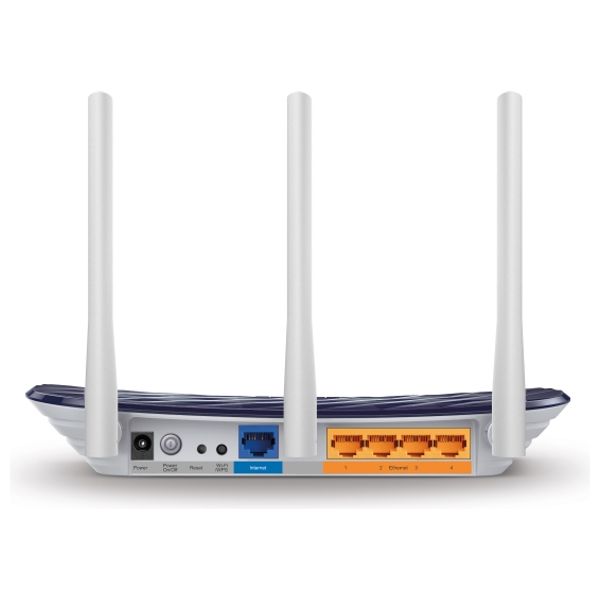

WPA/WPA2-Enterprise (802.1x)HARDWAREProcessorSingle-Core CPUEthernet Ports1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN PortsButtonsWPS/Wi-Fi Button

Power On/Off Button

Reset ButtonPower9 V ⎓ 0.6 ASOFTWAREProtocolsIPv4

IPv6Parental ControlsURL Filtering

Time ControlsWAN TypesDynamic IP

Static IP

PPPoE

PPTP

L2TPQuality of ServiceQoS by DeviceNAT ForwardingVirtual Server

Port Forwarding

Port Triggering

DMZ

UPnPIPTVIGMP Proxy

IGMP SnoopingDHCPAddress Reservation

DHCP Client List

ServerDDNSNO-IP

Comex

DynDNSManagementTether App

Webpage

Check Web Emulator>OTHERSystem RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)CertificationsFCC, CE, RoHSEnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensingTEST DATAWiFi Transmission PowerCE:

<20dBm(2.4GHz)

<23dBm(5GHz)WiFi Reception Sensitivity5GHz:

11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:

-62dBm

2.4GHz:

11g 54M: -76dBm11n; HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBmPHYSICALDimensions (W×D×H)9.1 × 5.7 × 1.4 in

(230 × 144 × 35 mm)Package ContentsWi-Fi Router Archer C20

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
